CTSC-001471

CTSC-001471

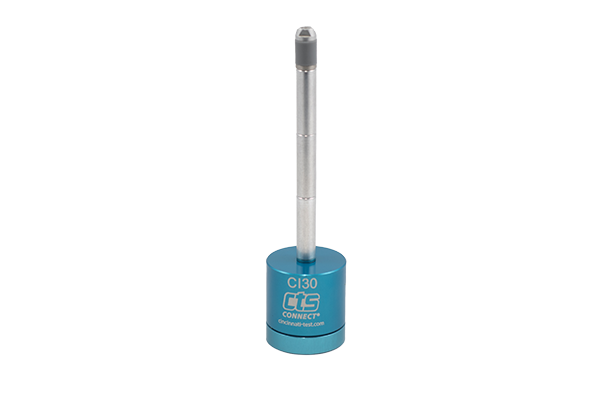

The CI30-AA-E3.0-M pneumactically actuated connector with a 3" extension is designed to seal into the inside diameter (ID) of a port, tube, or fitting in medical applications, offering a sealing range from 0.310" to 0.330" (7.9 mm to 8.4 mm).

CTSConnect:CI30-AA-E3.0-M
Seal & Product Type:3in. Extension - ID Pneumatic Seal
Sealing Range: 0.31-0.33 in (7.9-8.4 mm)
Seal Material:Medical Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$590
/
