CTSC-001514

CTSC-001514

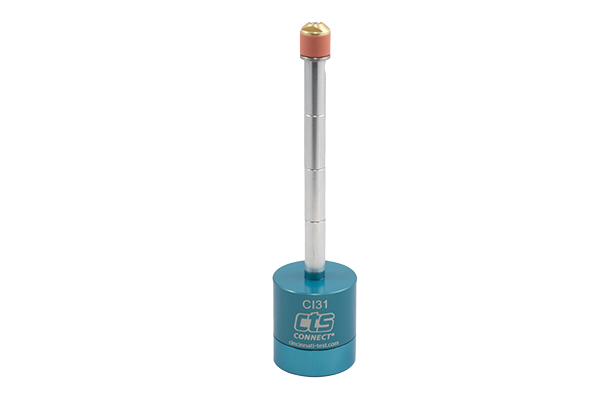

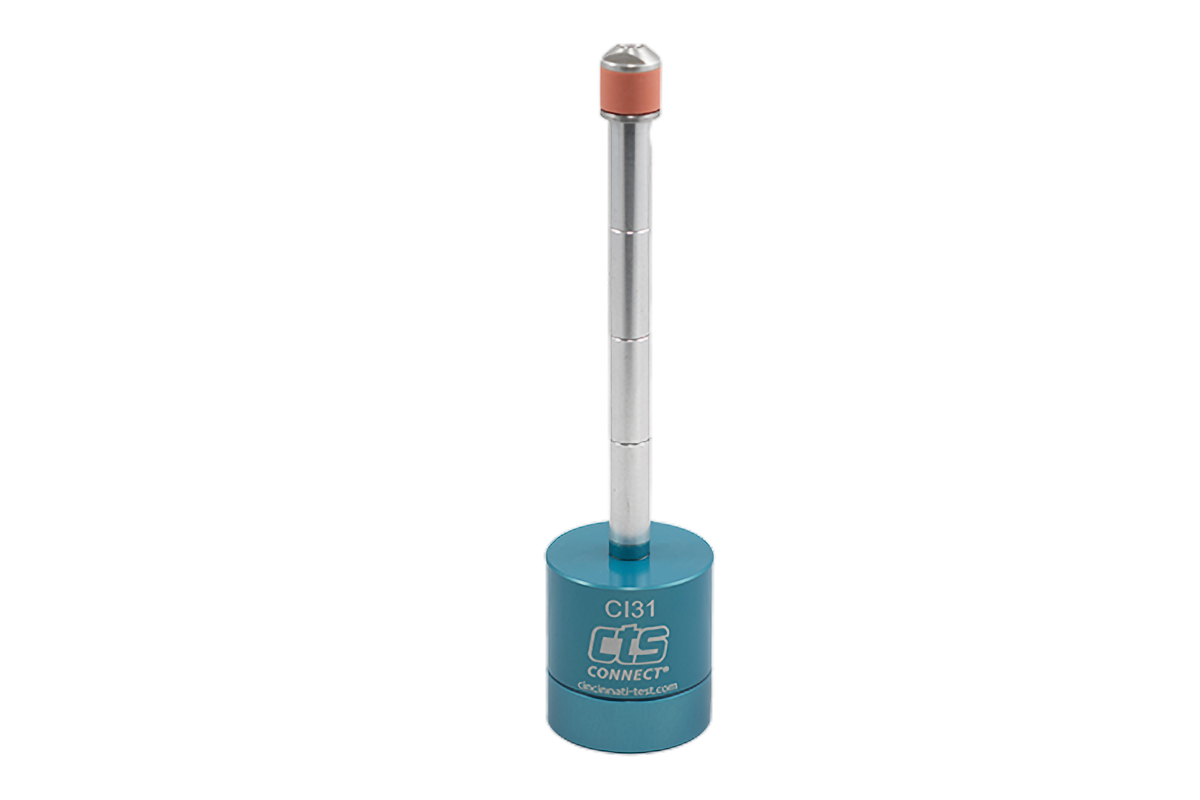

The CI31-AA-E4.0 pneumatically actuated connector with a 4" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.394" to 0.472" (10 mm to 12 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI31-AA-E4.0
Seal Range: 0.394-0.472 in. (10-12 mm)
Seal Type: 60 Durometer Silicone - Pink
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$815
/
