CTSC-001555

CTSC-001555

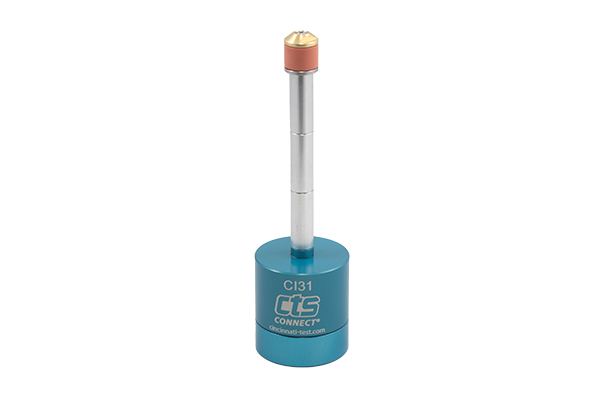

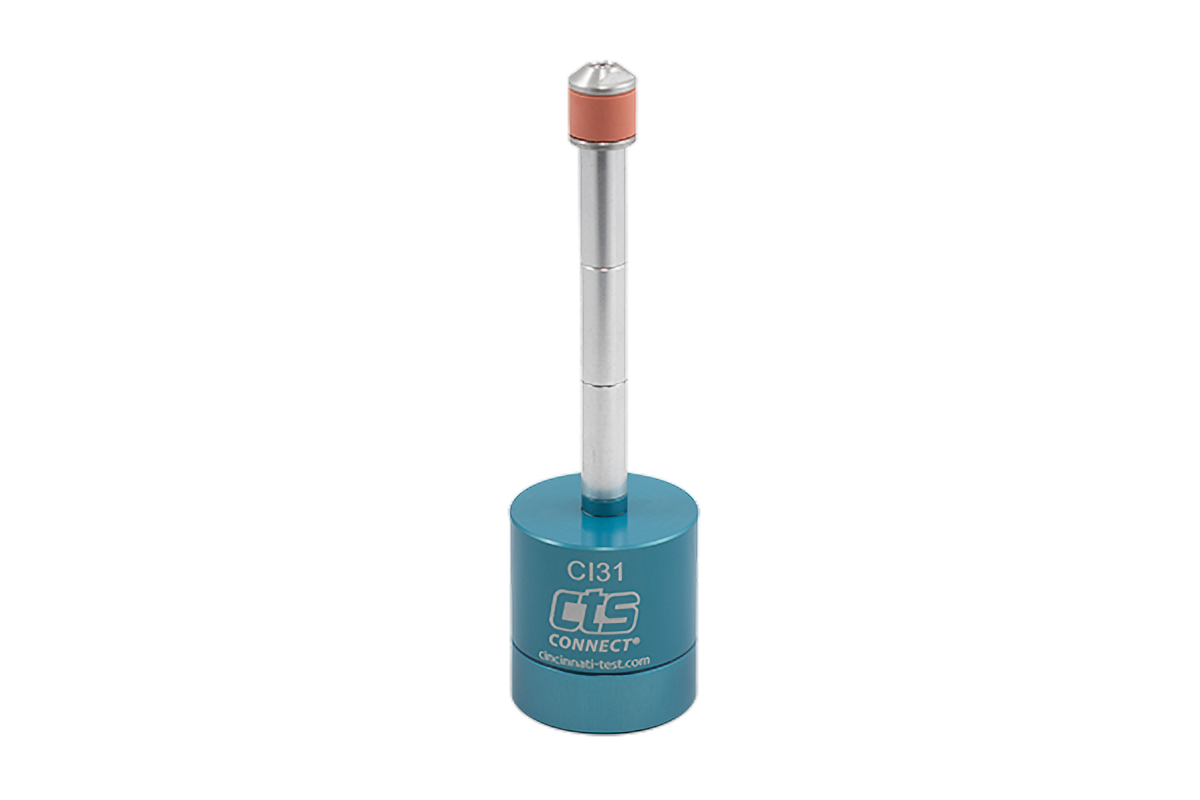

The CI31-AD-E3.0 pneumatically actuated connector with a 3" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.551" to 0.630" (14 mm to 16 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI31-AD-E3.0
Seal Range: 0.551-0.63 in. (14-16 mm)
Seal Type: 60 Durometer Silicone - Pink
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$725
/
