CTSC-001556

CTSC-001556

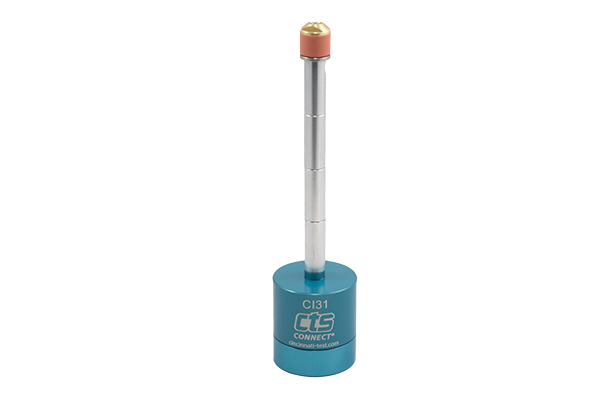

The CI31-AD-E4.0 pneumatically actuated connector with a 4" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.551" to 0.630" (14 mm to 16 mm).

CTSConnect:CI31-AD-E4.0
Seal & Product Type:4in. Extension - ID Pneumatic Seal
Sealing Range: 0.551-0.63 in. (14-16 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$815
/
