CTSC-001627

CTSC-001627

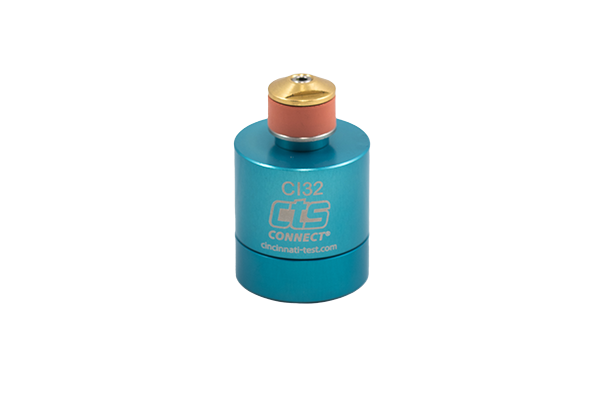

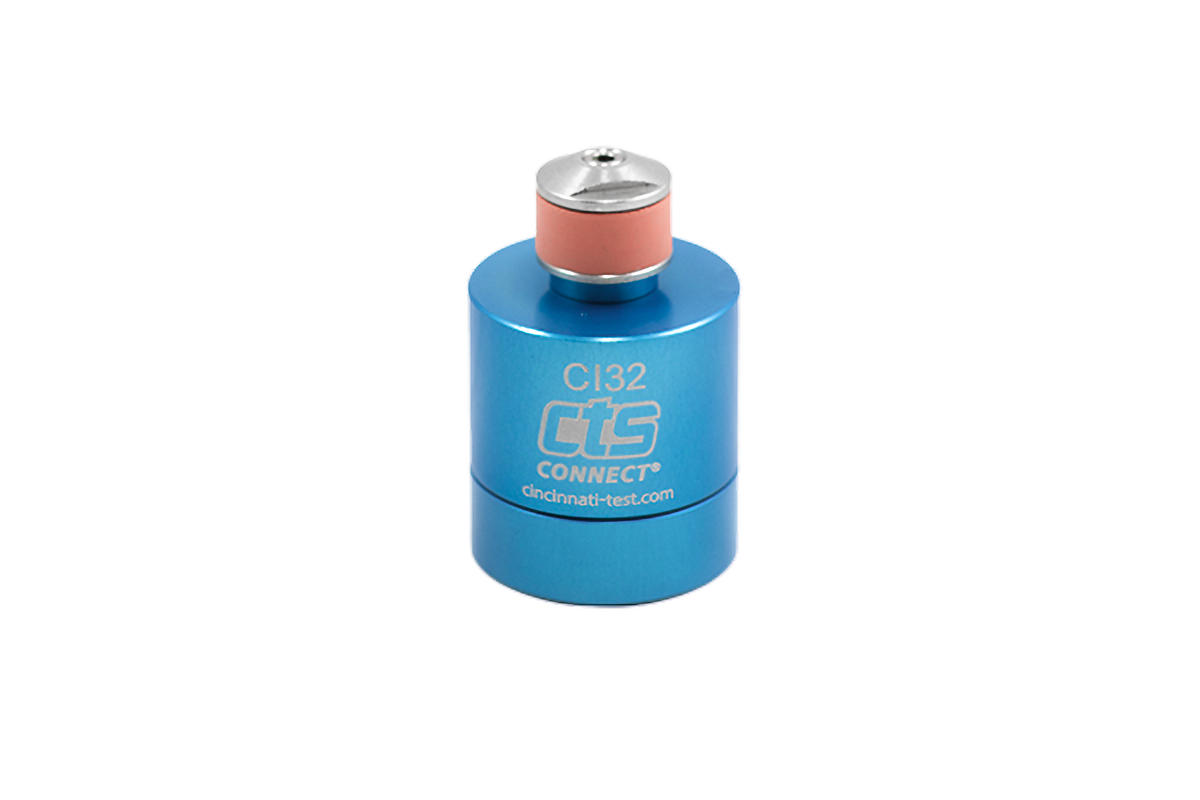

The CI32-AE pneumatically actuated connector is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.787" to 0.866" (20 mm to 22 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI32-AE
Seal Range: 0.787-0.866 in. (20-22 mm)
Seal Type: 60 Durometer Silicone - Pink
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$490
/
