CTSC-001647

CTSC-001647

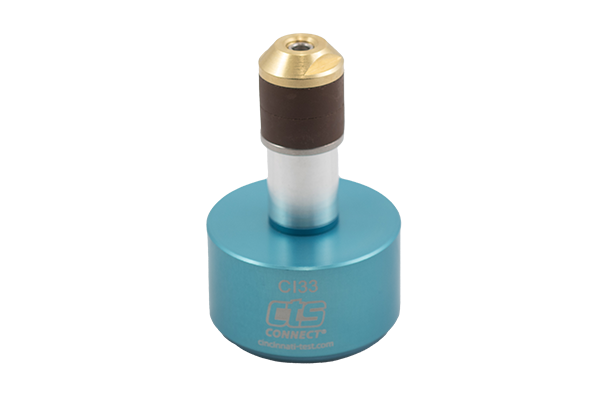

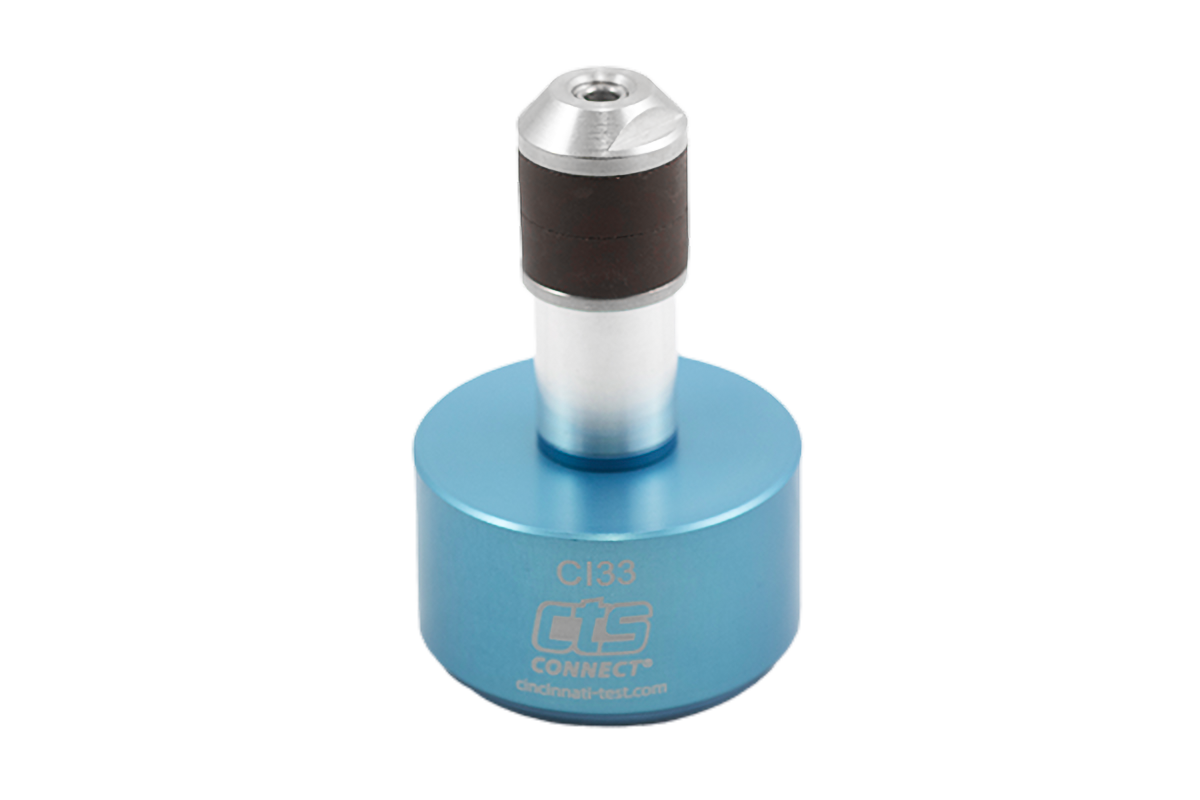

The CI33-AA-E1.0 pneumatically actuated connector with a 1" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.866" to 0.945" (22 mm to 24 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI33-AA-E1.0
Seal Range: 0.866-0.945 in. (22-24 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$740
/
