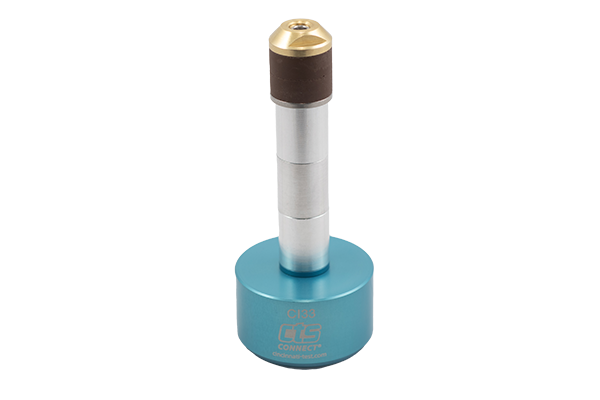

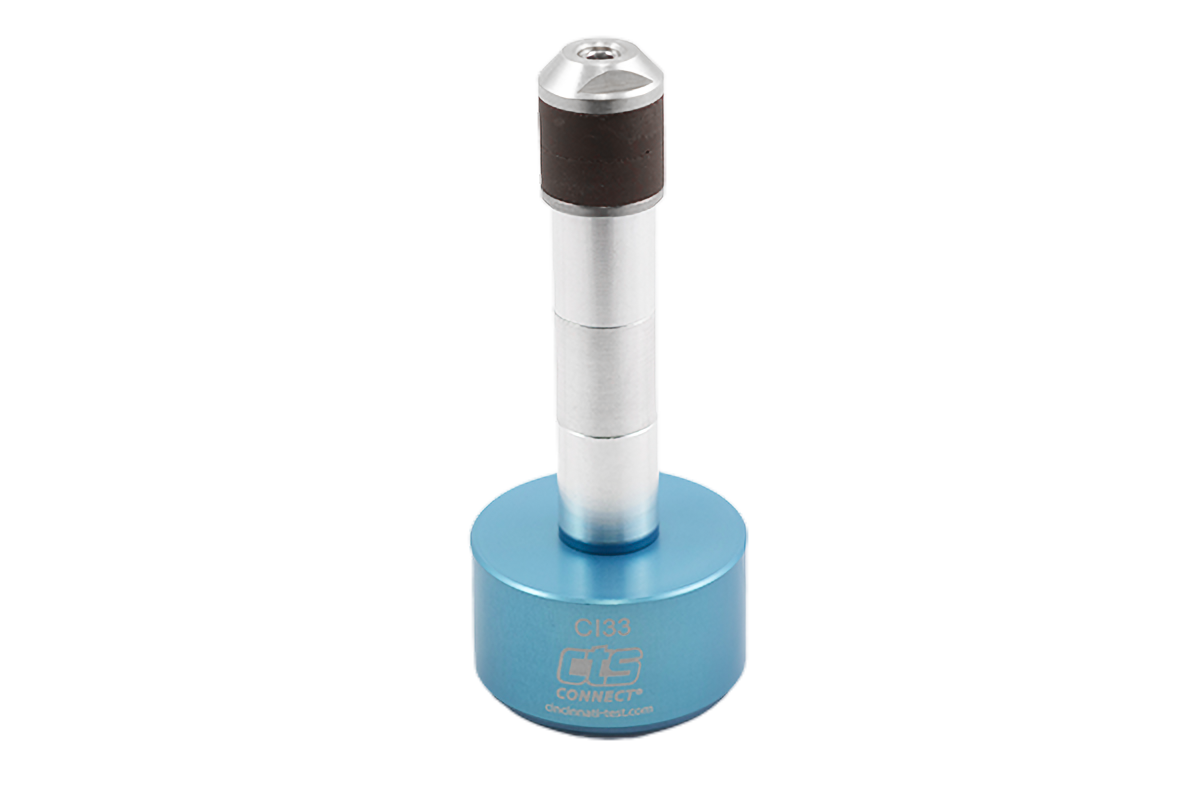

The CI33-AC-E3.0 pneumatically actuated connector with a 3" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.945" to 1.024" (24 mm to 26 mm).

CTSConnect:CI33-AC-E3.0
Seal & Product Type:3in. Extension - ID Pneumatic Seal
Sealing Range: 0.945-1.024 in. (24-26 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$830
/
