CTSC-001695

CTSC-001695

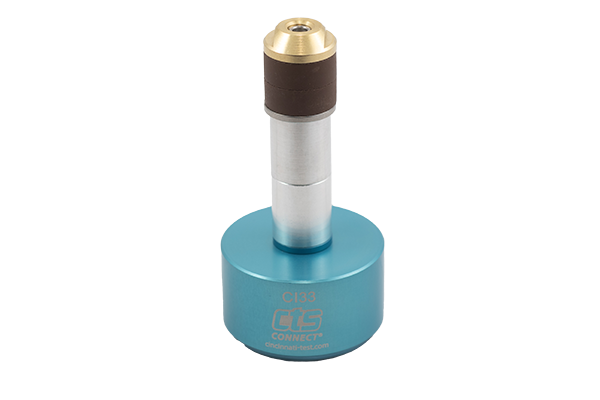

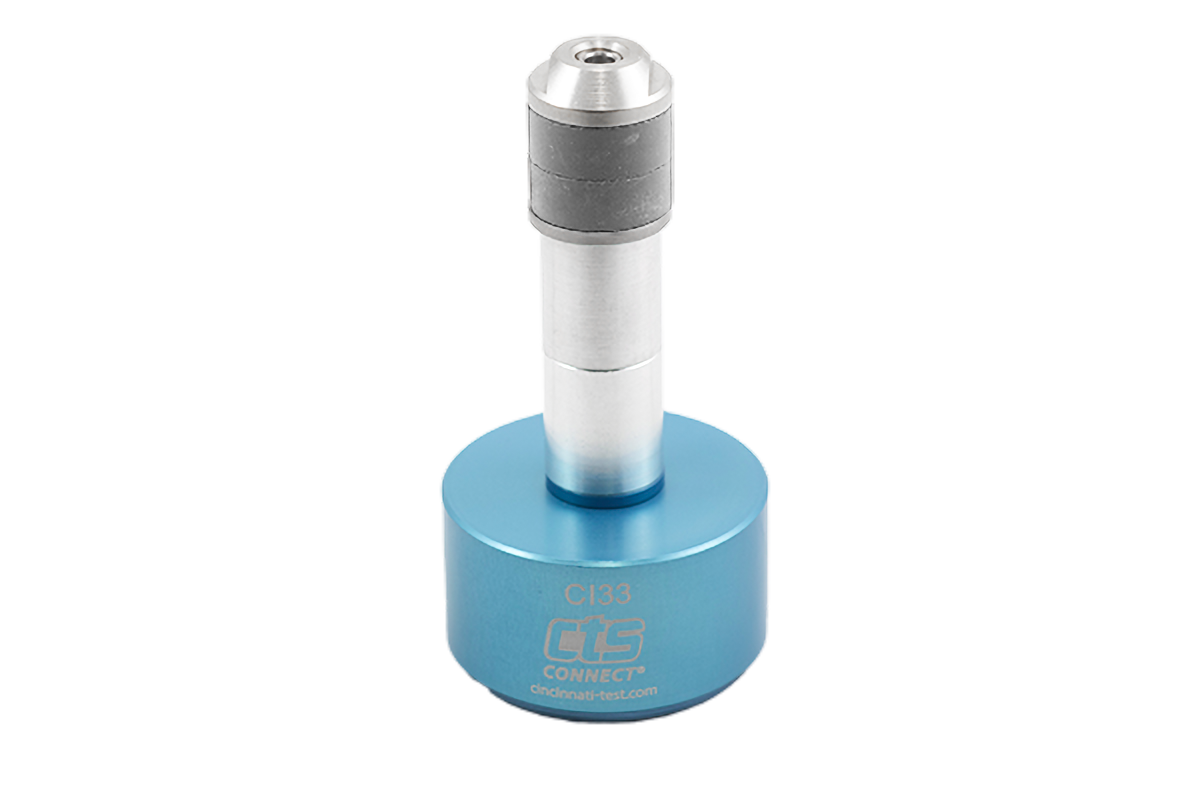

The CI33-AD-E2.0-M pneumatically actuated connector with a 2" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting in medical applications, offering a sealing range from 1.024" to 1.102" (26 mm to 28 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI33-AD-E2.0-M
Seal Range: 1.024-1.102 in. (26-28 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$770
/
