CTSC-001737

CTSC-001737

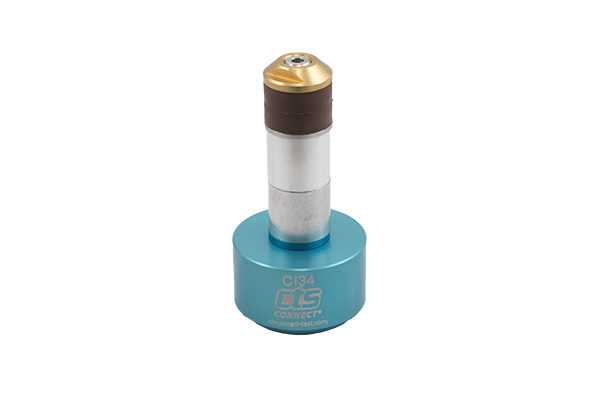

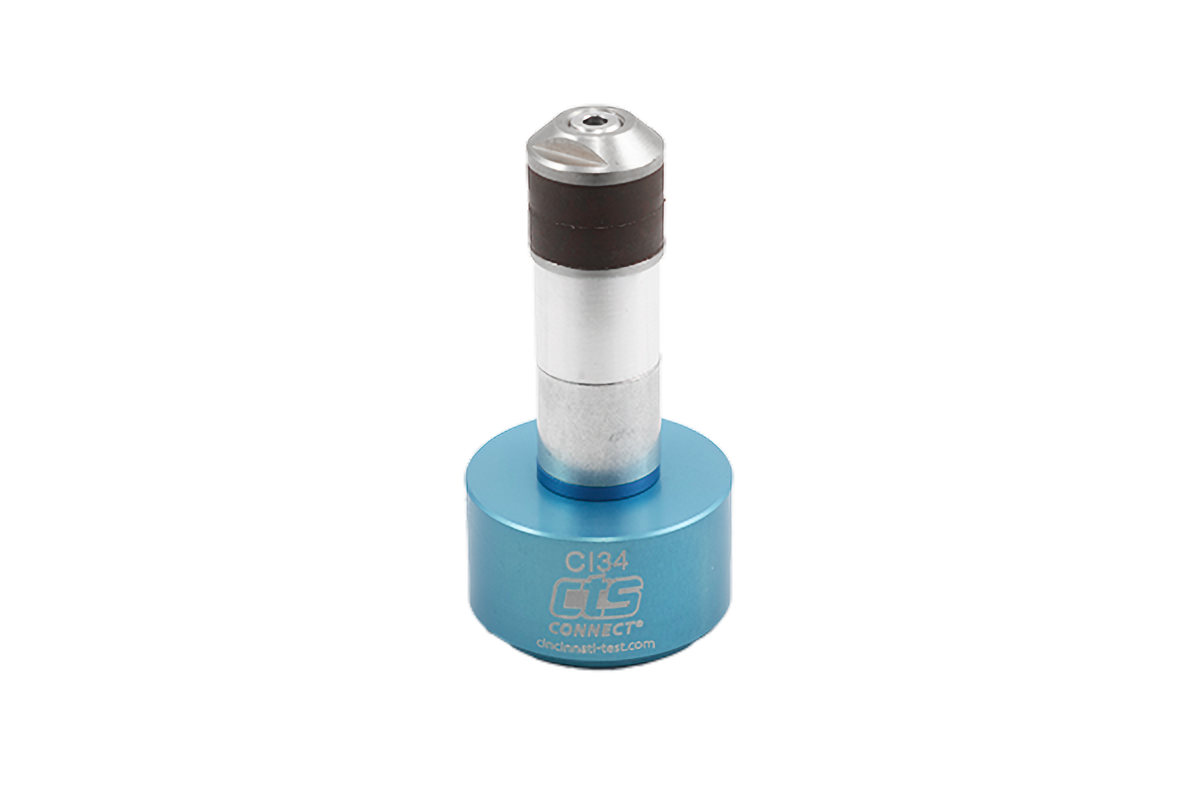

The CI34-AC-E2.0 pneumatically actuated connector with a 2" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.181" to 1.260" (30 mm to 32 mm).

CTSConnect:CI34-AC-E2.0
Seal & Product Type:2in. Extension - ID Pneumatic Seal
Sealing Range: 1.181-1.26 in. (30-32 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$790
/
