CTSC-001743

CTSC-001743

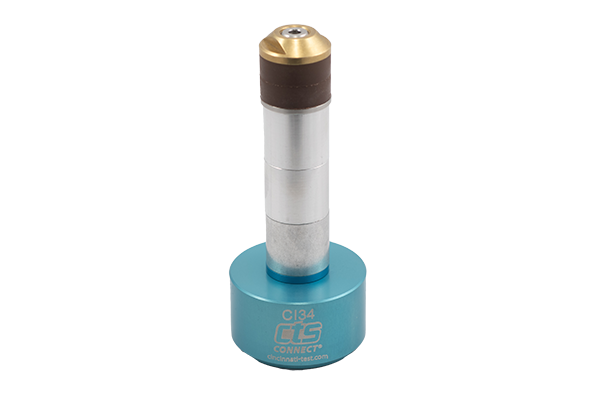

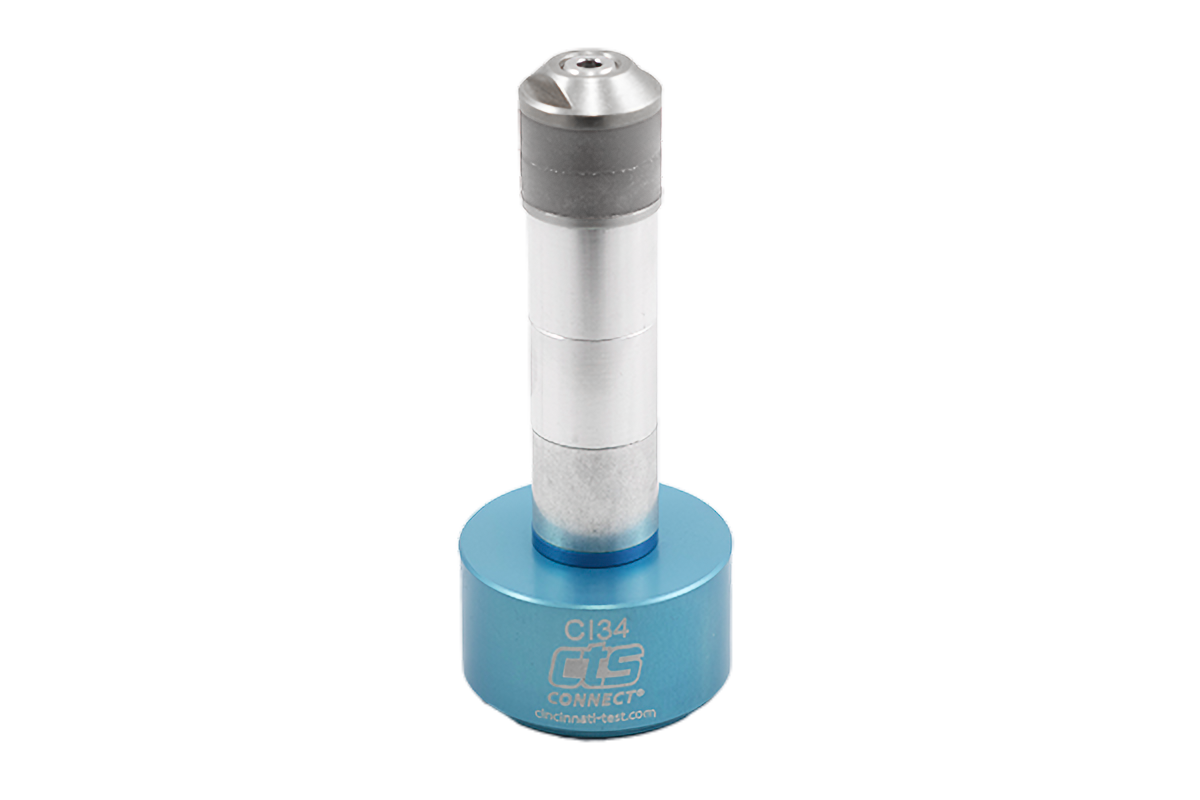

The CI34-AC-E3.0-M pneumatically actuated connector with a 3" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting in medical applications, offering a sealing range from 1.181" to 1.260" (30 mm to 32 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI34-AC-E3.0-M
Seal Range: 1.181-1.26 in. (30-32 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$850
/
