CTSC-001750

CTSC-001750

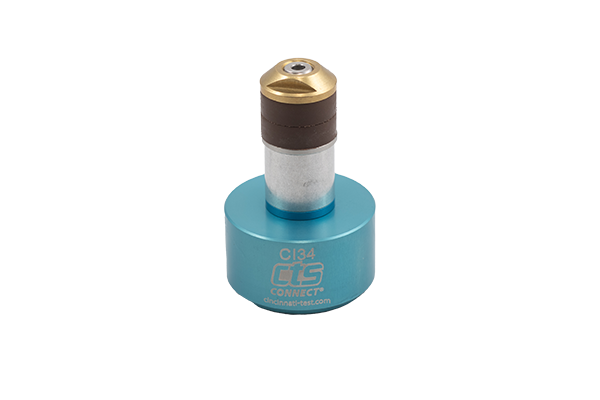

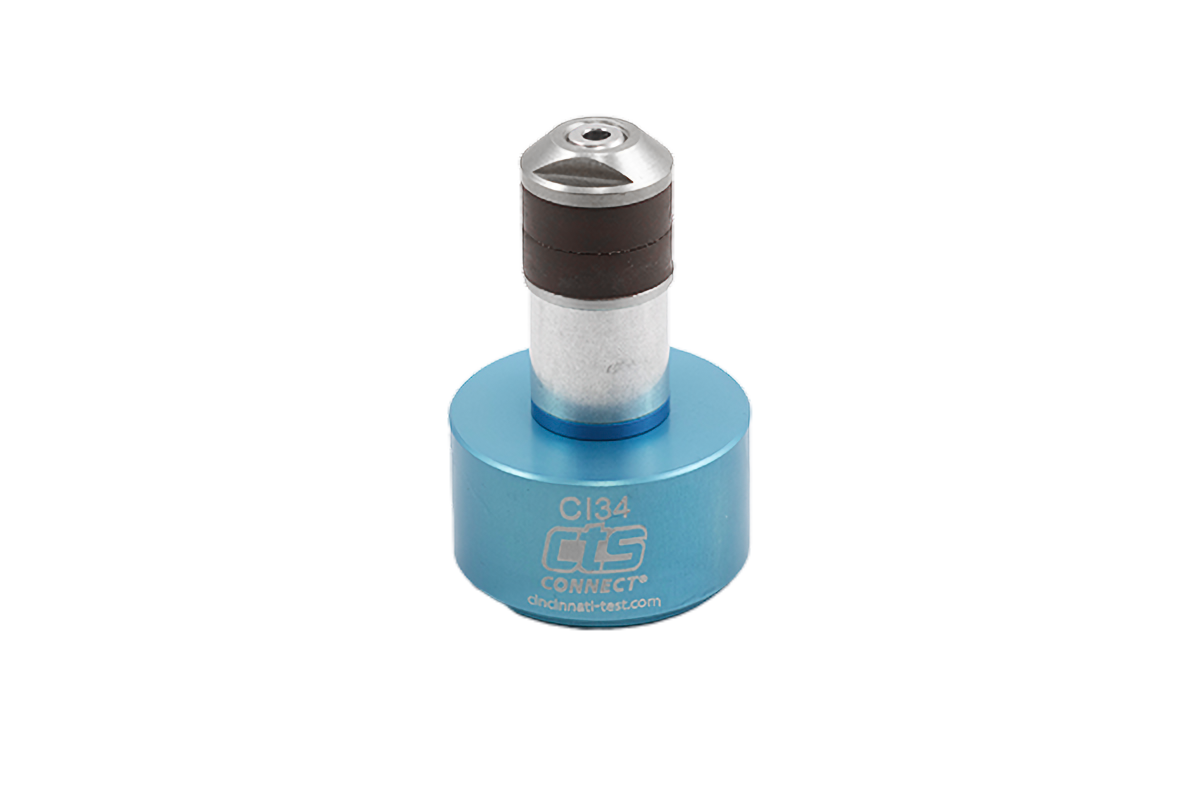

The CI34-AD-E1.0 pneumatically actuated connector with a 1" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.260" to 1.339" (32 mm to 34 mm).

CTSConnect:CI34-AD-E1.0
Seal & Product Type:1in. Extension - ID Pneumatic Seal
Sealing Range: 1.26-1.339 in. (32-34 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$760
/
