CTSC-001831

CTSC-001831

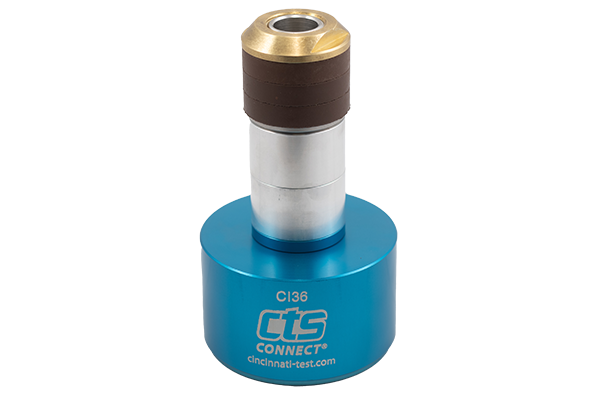

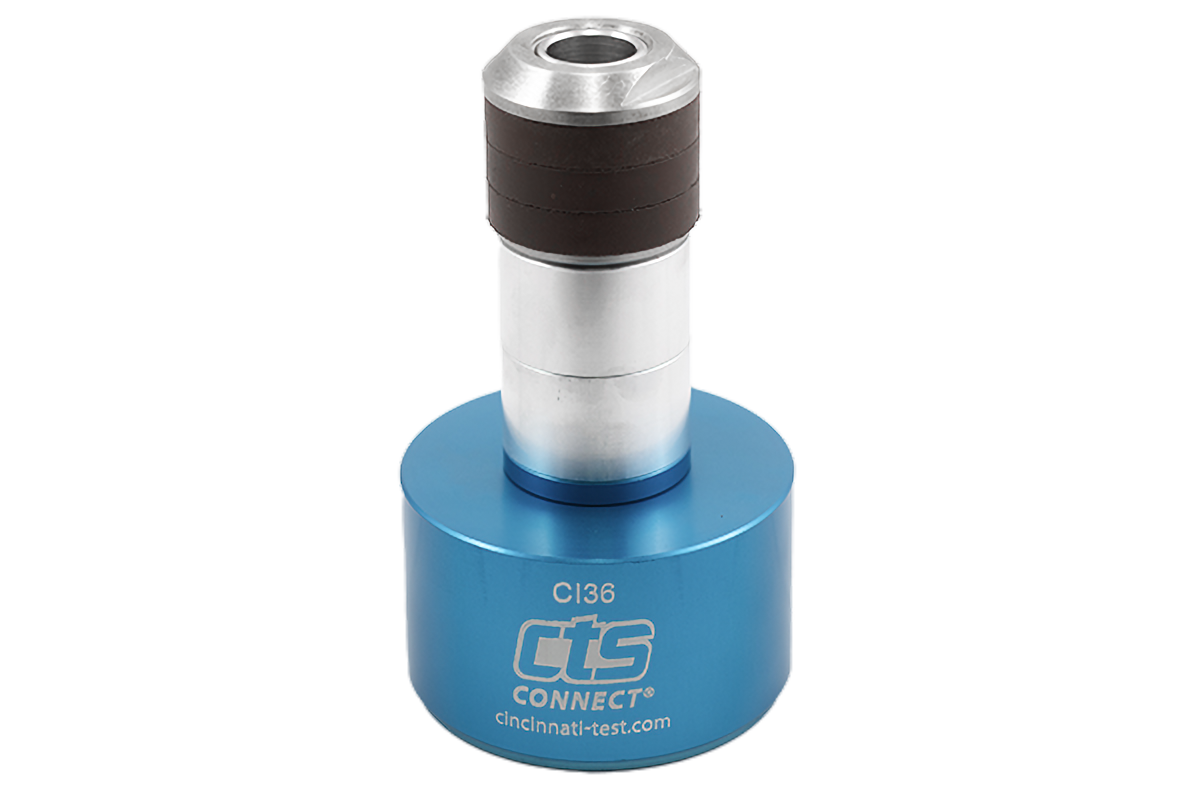

The CI36-AA-E2.0 pneumatically actuated connector with a 2" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.693" to 1.850" (43 mm to 47 mm).

CTSConnect:CI36-AA-E2.0
Seal & Product Type:2in. Extension - ID Pneumatic Seal
Sealing Range: 1.693-1.85 in. (43-47 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$1,010
/
