CTSC-001873

CTSC-001873

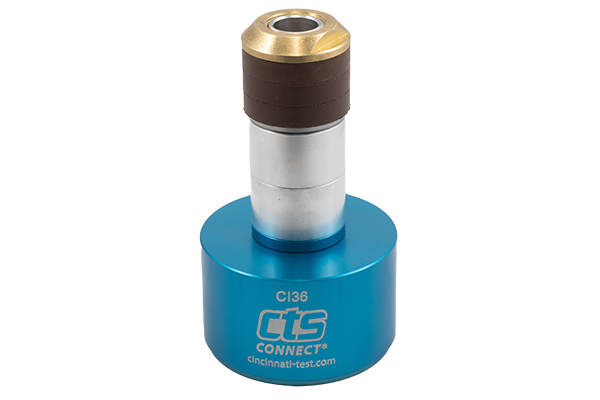

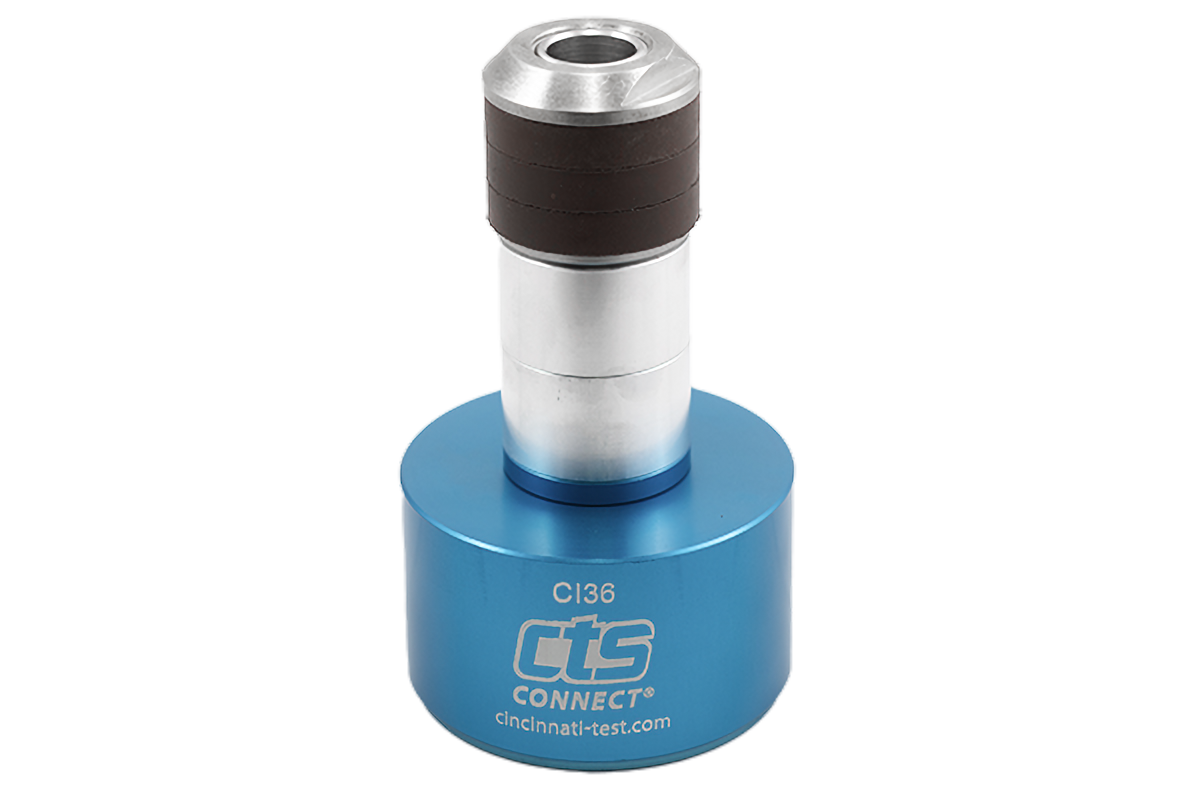

The CI36-AD-E2.0 pneumatically actuated connector with a 2" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 2.008" to 2.165" (51 mm to 55 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI36-AD-E2.0
Seal Range: 2.008-2.165 in. (51-55 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 1/2 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$1,010
/
