CTSC-001874

CTSC-001874

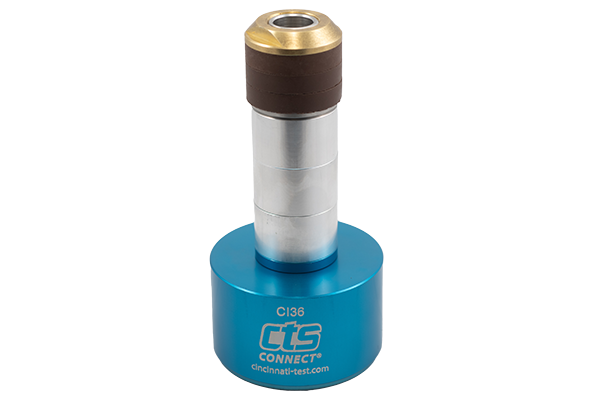

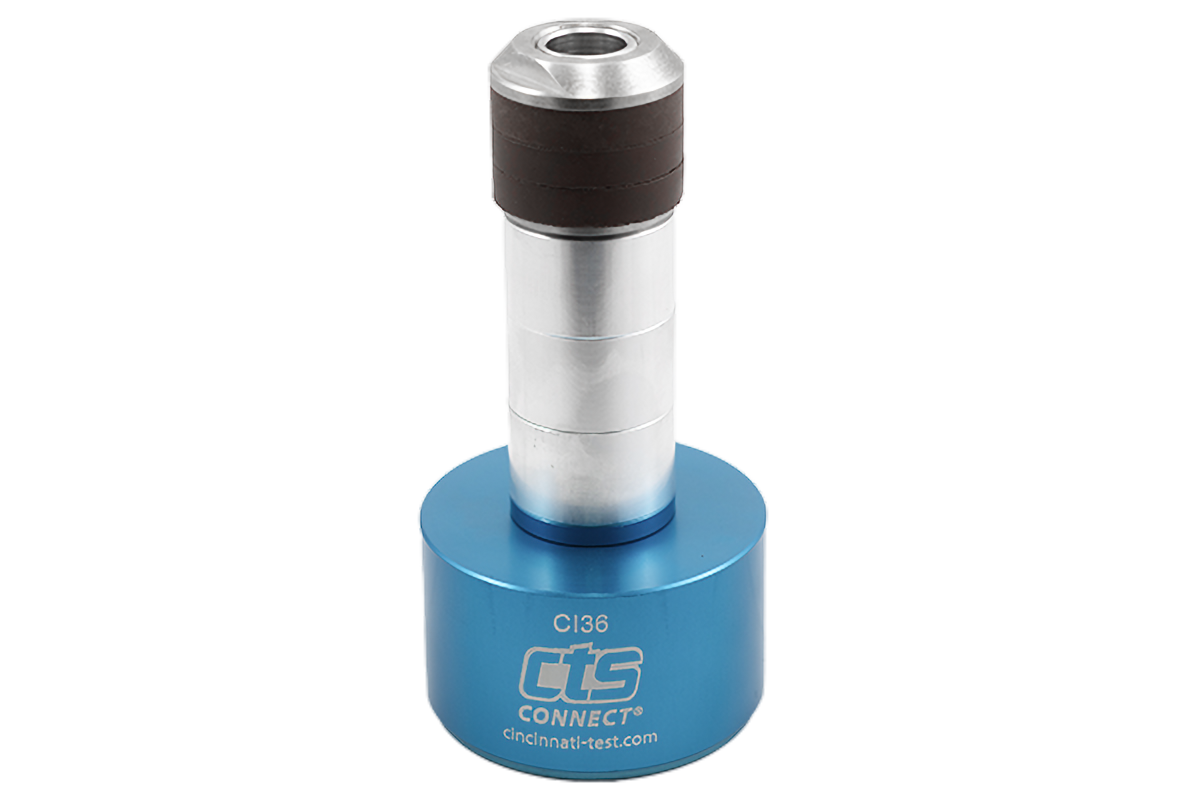

The CI36-AD-E3.0 pneumatically actuated connector with a 3" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 2.008" to 2.165" (51 mm to 55 mm).

CTSConnect:CI36-AD-E3.0
Seal & Product Type:3in. Extension - ID Pneumatic Seal
Sealing Range: 2.008-2.165 in. (51-55 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$1,110
/
