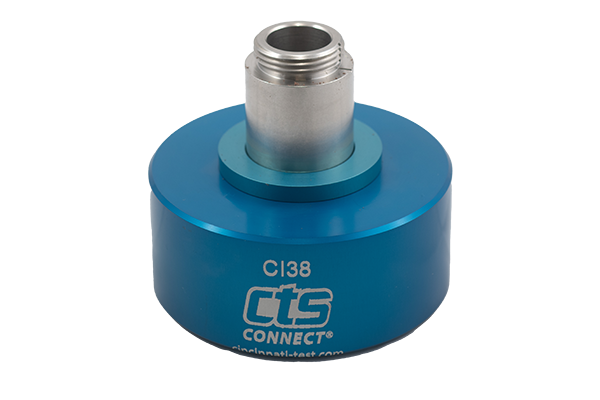

The CI38-E3.0 Body Only (no main seal kit) is a pneumatically actuated connector with a 3" extension designed to seal onto the inside diameter (ID) of a port, tube, or fitting and is available in a variety of sealing ranges from 2.585" to 3.005" (65.7 mm to 76.3 mm). Choose the correct main seal kit range for your application. (Note: The image is not currently a direct resemblance of product. Please rely on the 3D model until the correct image is uploaded.)

CTS Connect
Accessory: Body Only
Method: Pneumatic
Type: Inside Diameter
Body Size: CI38-E3.0
Seal Range: 2.585-3.005 in. (65.7-76.3 mm)
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum
Test pressure:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$1,335
/
