CTSC-001955

CTSC-001955

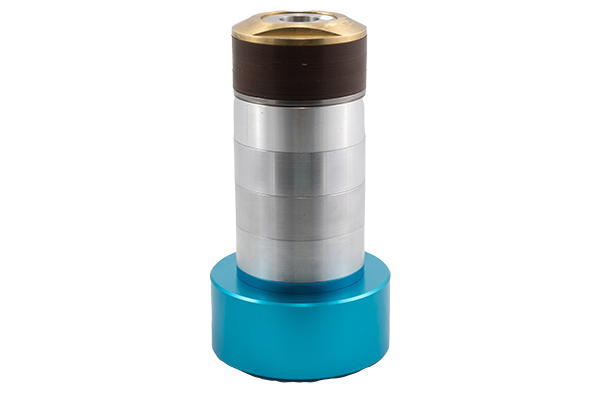

The CI38-AA-E4.0 pneumatically actuated connector with a 4" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 2.585" to 2.725" (65.7 mm to 69.2 mm).

CTSConnect:CI38-AA-E4.0
Seal & Product Type:4in. Extension - ID Pneumatic Seal
Sealing Range: 2.585-2.725 in. (65.7-69.2 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$1,660
/
