CTSC-001994

CTSC-001994

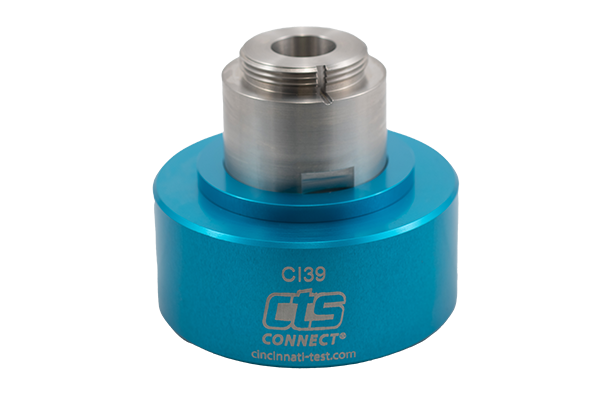

The CI39-E1.0 Body Only (no main seal kit) is a pneumatically actuated connector with a 1" extension designed to seal onto the inside diameter (ID) of a port, tube, or fitting and is available in a variety of sealing ranges from 3.005" to 3.565" (76.3 mm to 90.6 mm). Choose the correct main seal kit range for your application. (Note: The image is not currently a direct resemblance of product. Please rely on the 3D model until the correct image is uploaded.)

CTS Connect
Accessory: Body Only
Method: Pneumatic
Type: Inside Diameter
Body Size: CI39-E1.0
Seal Range: 3.005-3.565 in. (76.3-90.6 mm)
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum
Test pressure:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$1,820
/
