CTSC-001998

CTSC-001998

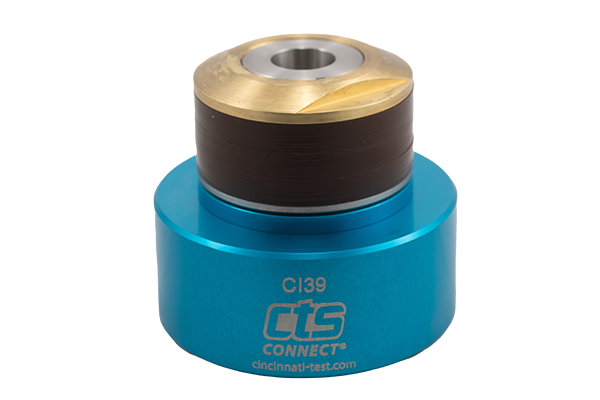

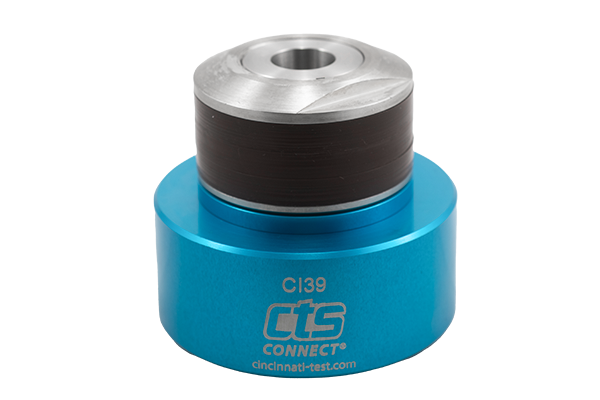

The CI39 pneumactically actuated connector is designed to seal into the inside diameter (ID) of a port, tube, or fitting and is available with a sealing range from 3.005 to 3.565” (76.3 to 90.6 mm). Choose the correct incremental ranges for your application.

CTSConnect:CI39-AA
Seal & Product Type:Std. Length - ID Pneumatic Seal
Sealing Range: 3.005-3.145 in (76.3-79.9 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$1,830
/
