CTSC-002059

CTSC-002059

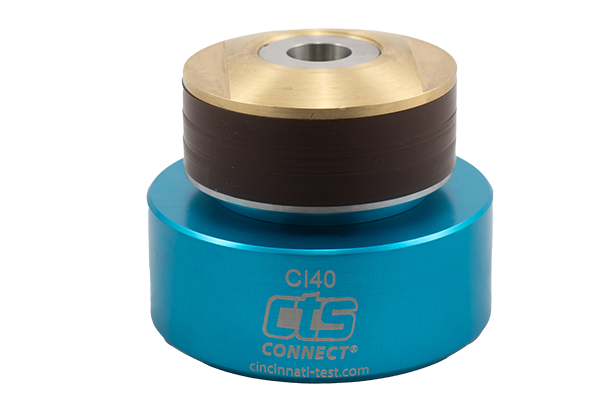

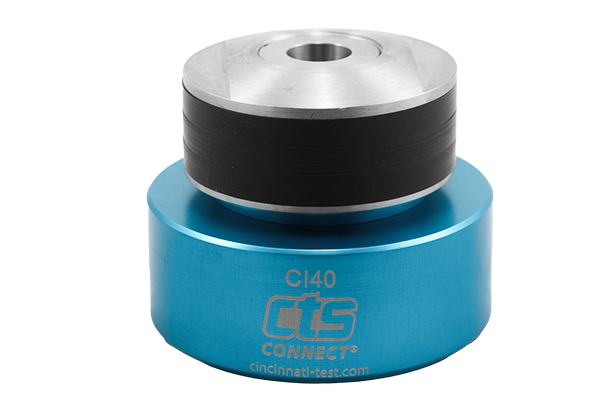

The CI40-AA pneumatically actuated connector is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 3.565" to 3.705" (90.6 mm to 94.1 mm).

CTSConnect:CI40-AA
Seal & Product Type:Std. Length - ID Pneumatic Seal
Sealing Range: 3.565-3.705 in. (90.6-94.1 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$2,010
/
