CTSC-002074

CTSC-002074

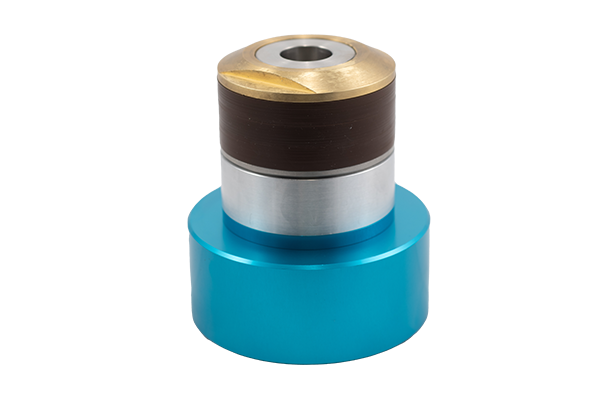

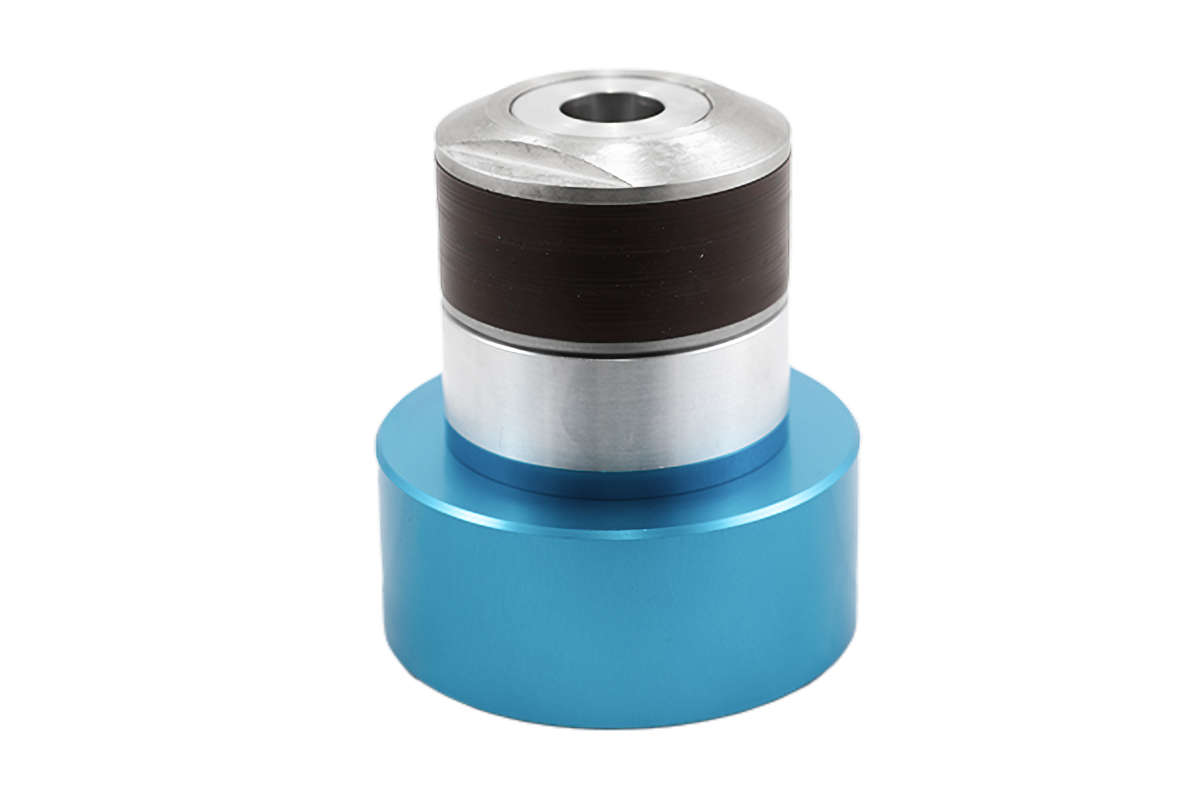

The CI40-AB-E1.0 pneumatically actuated connector with a 1" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 3.705" to 3.845" (94.1 mm to 97.7 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI40-AB-E1.0
Seal Range: 3.705-3.845 in. (94.1-97.7 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$2,410
/
