CTSC-002300

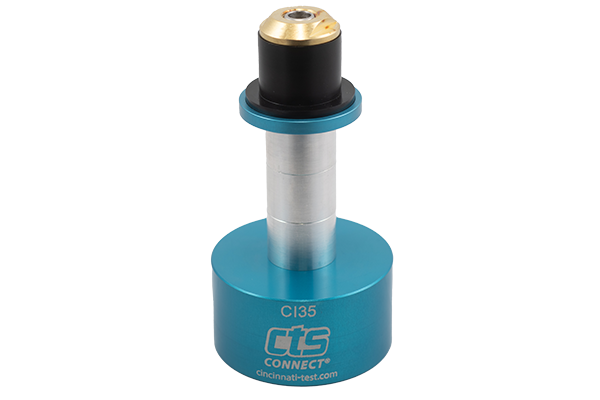

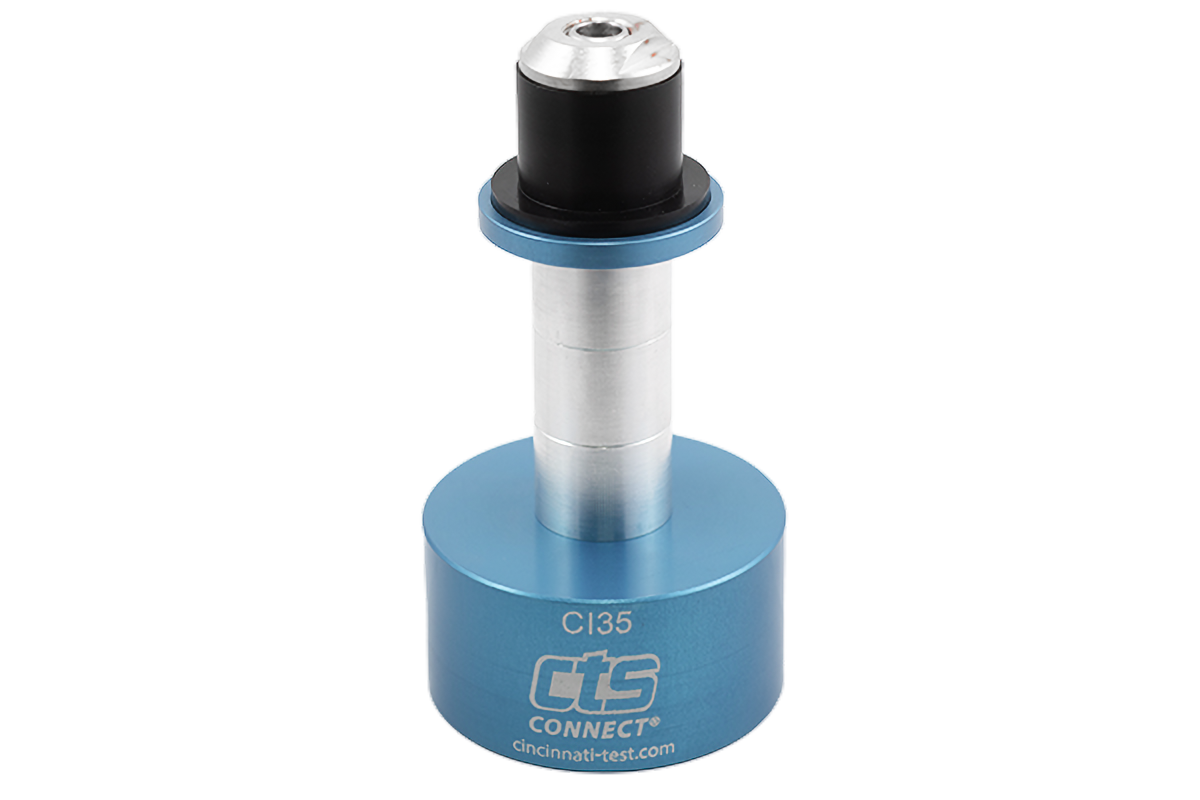

The CI35-M42-E3.0 pneumatically actuated connector with a 3" extension is designed to seal onto the inside diameter (ID) of a M42 threaded fitting.

CTS Connect
Method:	Pneumatic
Type:	Inside Diameter
Seal Set:	CI35-M42-E3.0
Thread Size:	M42
Seal Type:	55 Durometer Rubberized Urethane - Black
Number of Seals:	1
Bore Type:	Threaded
Test Air Connection:	1/2 in. NPT
Pilot Air Connection:	1/8 in. NPT
Construction Materials:	Aluminum, stainless steel
Test pressure:	Vacuum to 120 psig
Pilot pressure:	Typically 60 - 90 psig

$1,090
