CTSC-002396

CTSC-002396

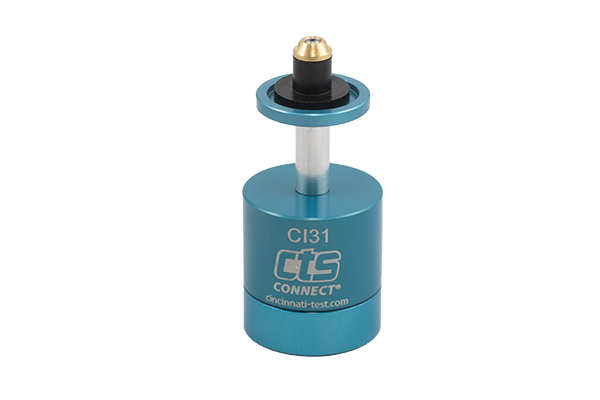

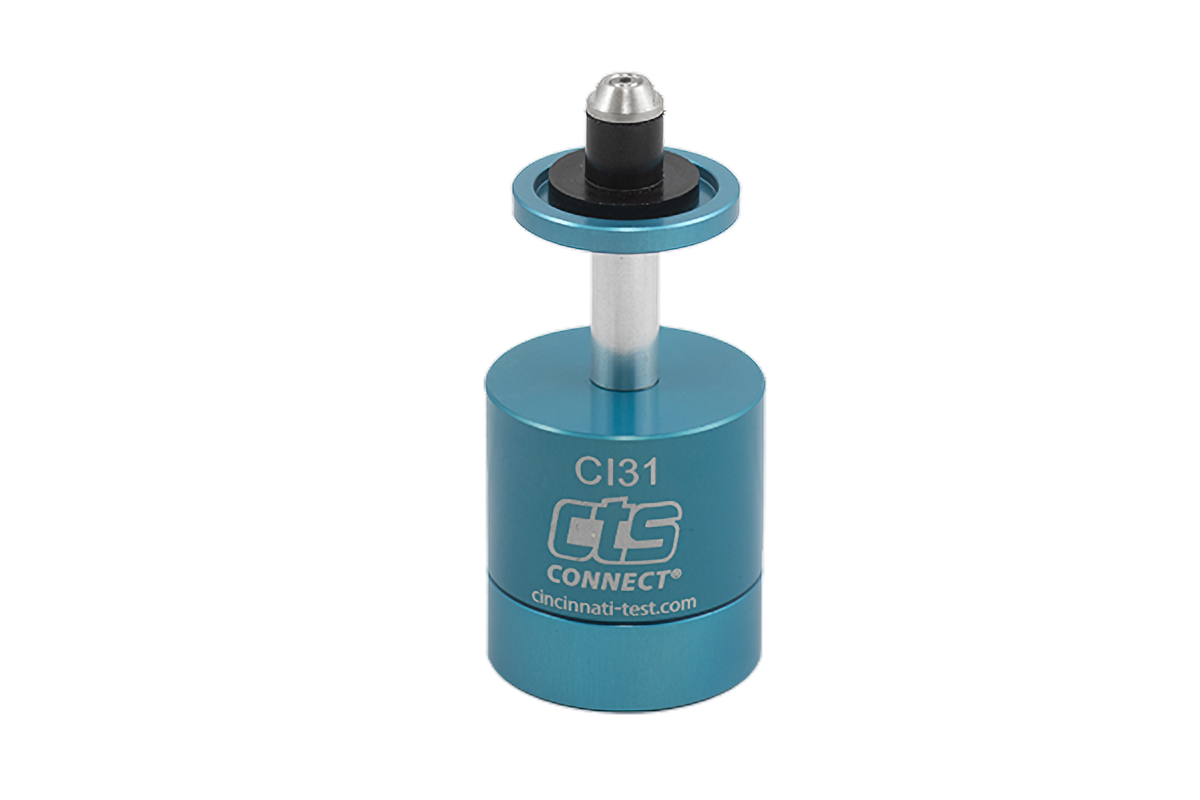

The CI31-SAE-0562-E1.0 pneumatically actuated connector with a 1" extension is designed to seal onto the inside diameter (ID) of a 9/16" SAE threaded fitting.

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI31-SAE-0562-E1.0
Thread Size: 9/16 in. SAE
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Threaded
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$635
/
