CTSC-002437

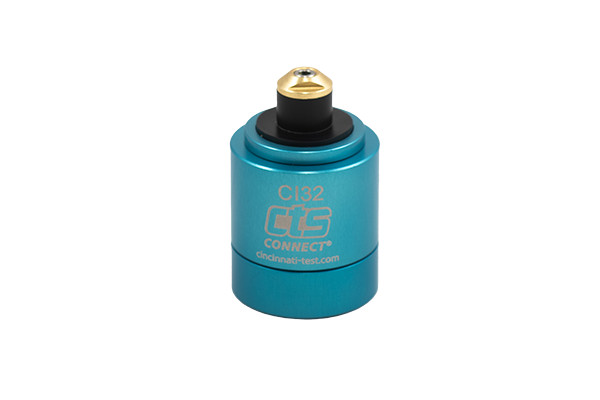

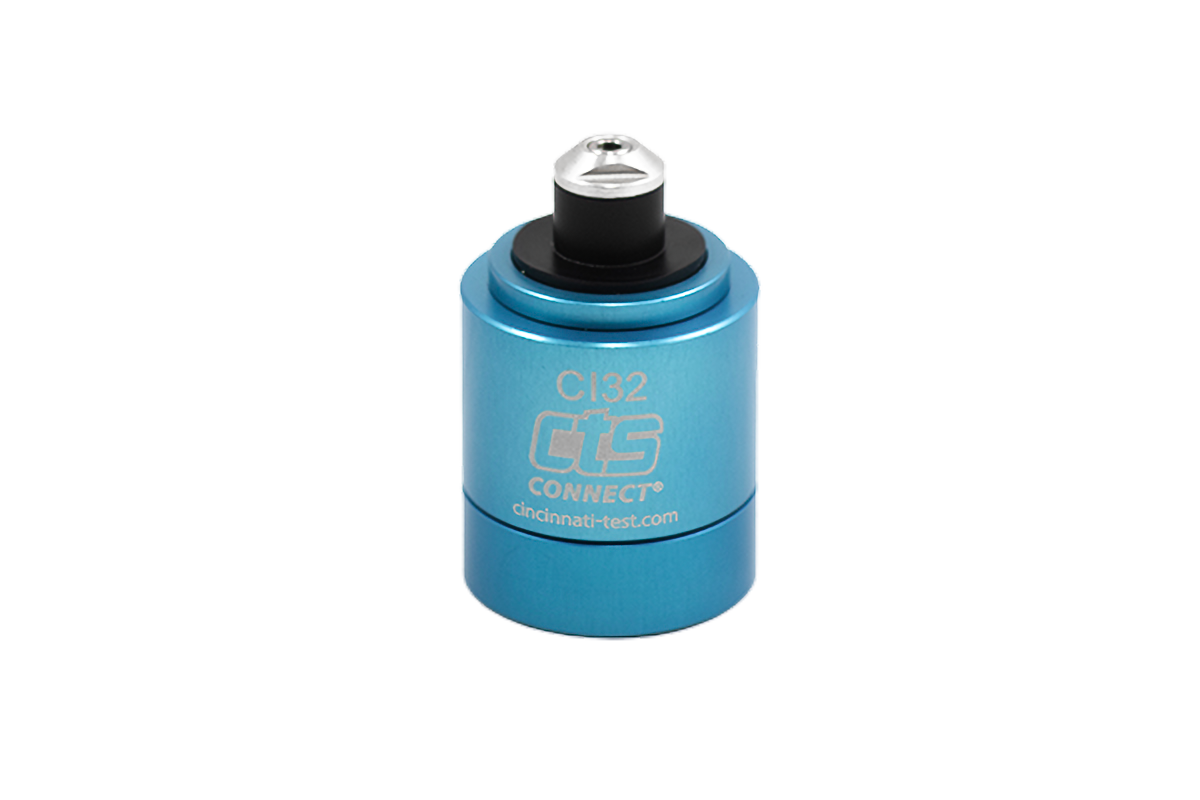

The CI32-SAE-0750 pneumatically actuated connector is designed to seal onto the inside diameter (ID) of a 3/4" SAE threaded fitting.

CTS Connect
Method:	Pneumatic
Type:	Inside Diameter
Seal Set:	CI32-SAE-0750
Thread Size:	3/4 in. SAE
Seal Type:	55 Durometer Rubberized Urethane - Black
Number of Seals:	1
Bore Type:	Threaded
Test Air Connection:	1/8 in. NPT
Pilot Air Connection:	1/8 in. NPT
Construction Materials:	Aluminum, stainless steel
Test pressure:	Vacuum to 120 psig
Pilot pressure:	Typically 60 - 90 psig
