CTSC-002567

CTSC-002567

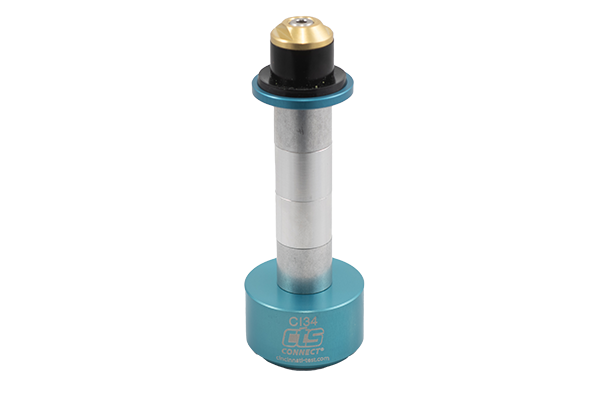

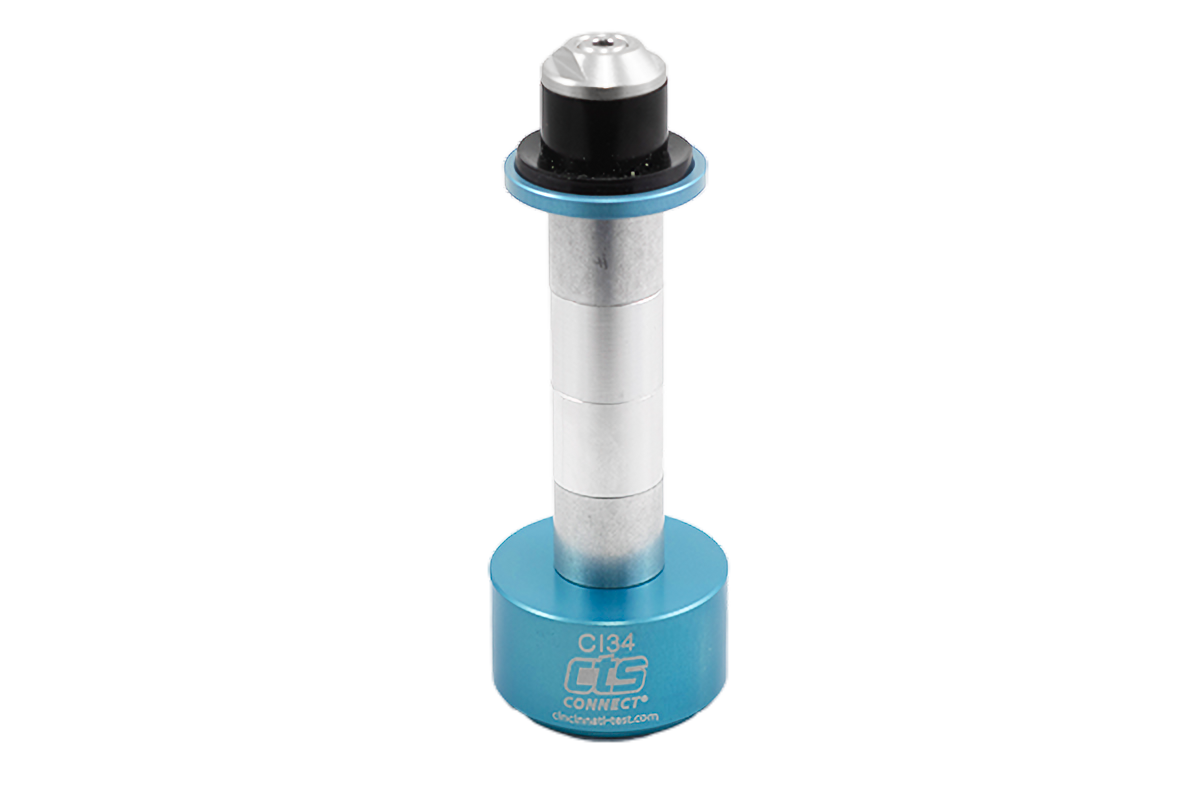

The CI34-SAE-1312-E4.0 pneumatically actuated connector with a 4" extension is designed to seal onto the inside diameter (ID) of a 1-5/16" SAE threaded fitting.

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI34-SAE-1312-E4.0
Thread Size: 1-5/16 in. SAE
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Threaded
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:Typically 60 - 90 psig
$940
/
