CTSC-002759

CTSC-002759

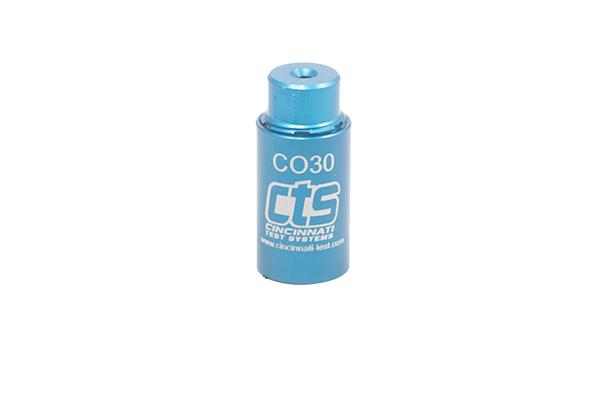

The CO30 Body Only (no main seal kit) is a pneumatically actuated connector designed to seal onto the outside diameter (OD) of a port, tube, or fitting and is available in a variety of sealing ranges from 0.030" to 0.130" (0.8 mm to 3.3 mm). Choose the correct main seal kit range for your application.

CTS Connect
Accessory: Body Only
Method: Pneumatic
Type: Outside Diameter
Body Size: CO30
Seal Range: 0.03-0.13 in. (0.8-3.3 mm)
Test Air Connection: 1/16 in. NPT
Pilot Air Connection: 10-32
Construction Materials: Aluminum
Test pressure:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$285
/
