CTSC-002761

CTSC-002761

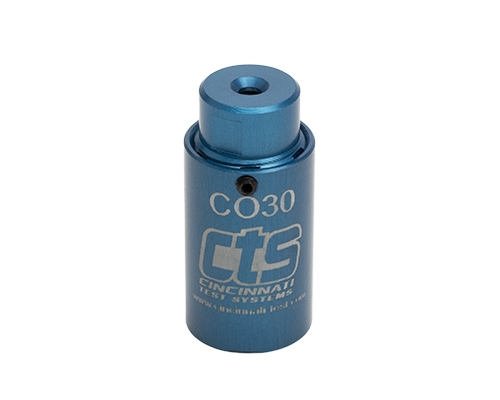

The CO30-AA-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 0.030" to 0.050" (0.8 mm to 1.3 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO30-AA-M
Seal Range: 0.03-0.05 in. (0.8-1.3 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/16 in. NPT
Pilot Air Connection: 10-32 UNF
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$325
/
