CTSC-002767

CTSC-002767

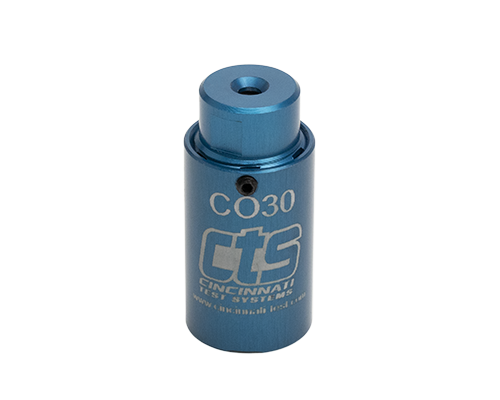

The CO30-AB pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.050" to 0.080" (1.3 mm to 2 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO30-AB
Seal Range: 0.05-0.08 in. (1.3-2 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/16 in. NPT
Pilot Air Connection: 10-32 UNF
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$325
/
