CTSC-002782

CTSC-002782

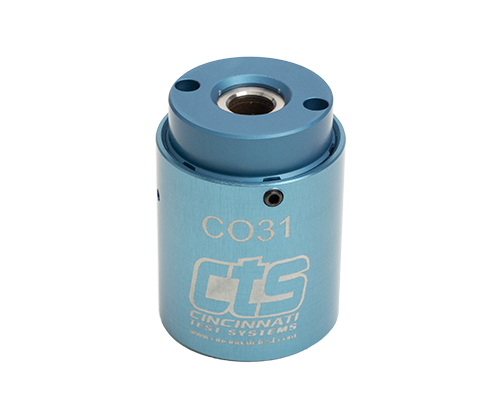

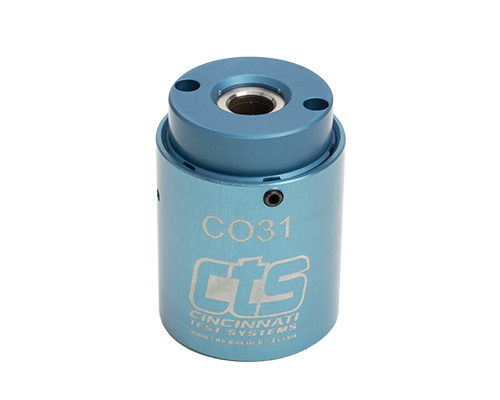

The CO31-AA pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.100" to 0.180" (2.5 mm to 4.6 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO31-AA
Seal Range: 0.1-0.18 in. (2.5-4.6 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/8 in. NPT
Pilot Air Connection: 1/16 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$375
/
