CTSC-002824

CTSC-002824

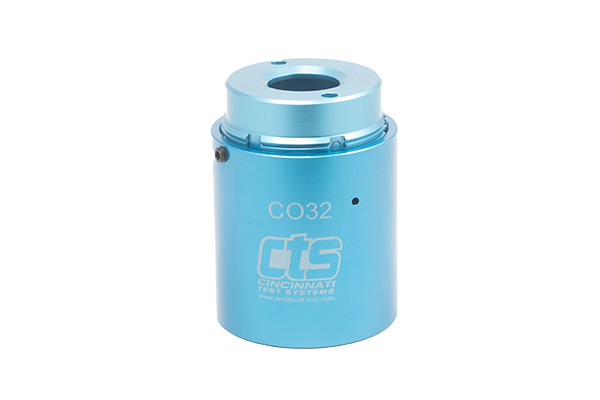

The CO32 Body Only (no main seal kit) is a pneumatically actuated connector designed to seal onto the outside diameter (OD) of a port, tube, or fitting and is available in a variety of sealing ranges from 0.433" to 0.827" (11 mm to 21 mm). Choose the correct main seal kit range for your application.

CTS Connect
Accessory: Body Only
Method: Pneumatic
Type: Outside Diameter
Body Size: CO32
Seal Range: 0.433-0.827 in. (11-21 mm)
Test Air Connection: 1/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum
Test pressure:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$400
/
