CTSC-002847

CTSC-002847

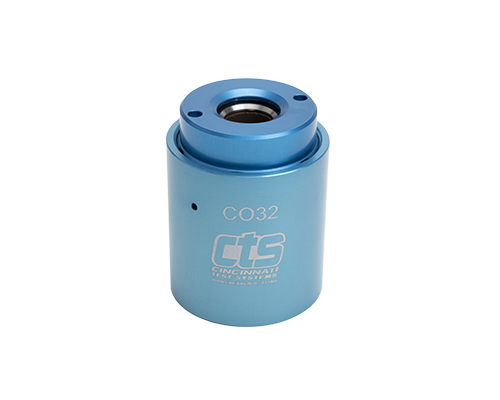

The CO32-AE-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 0.591" to 0.669" (15 mm to 17 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO32-AE-M
Seal Range: 0.591-0.669 in. (15-17 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$470
/
