CTSC-002903

CTSC-002903

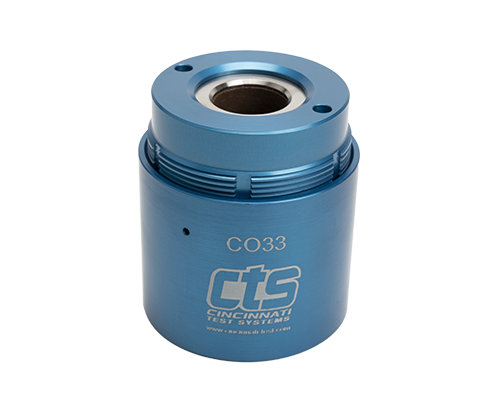

The CO33-AE pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.945" to 1.024" (24 mm to 26 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO33-AE
Seal Range: 0.945-1.024 in. (24-26 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$620
/
