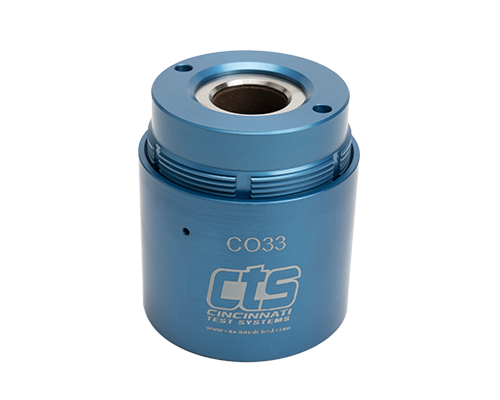

CTSC-002918

CTSC-002918

The CO33-AG-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 1.102" to 1.181" (28 mm to 30 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO33-AG-M
Seal Range: 1.102-1.181 in. (28-30 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$620
/
