CTSC-002952

CTSC-002952

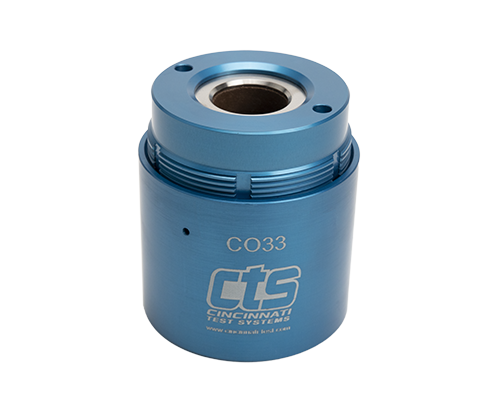

The CO33-AL pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 1.417" to 1.510" (36 mm to 38.4 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO33-AL
Seal Range: 1.417-1.51 in. (36-38.4 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$620
/
