CTSC-002960

CTSC-002960

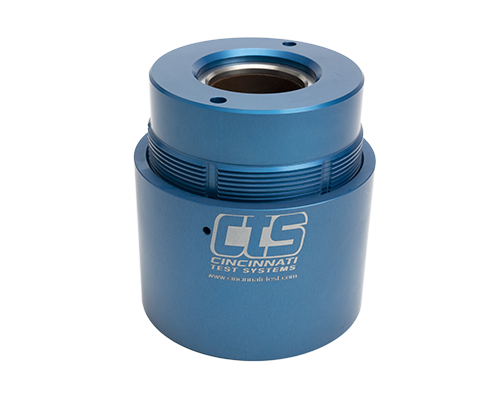

The CO34-AA pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 1.496" to 1.614" (38 mm to 41 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO34-AA
Seal Range: 1.496-1.614 in. (38-41 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$810
/
