CTSC-002975

CTSC-002975

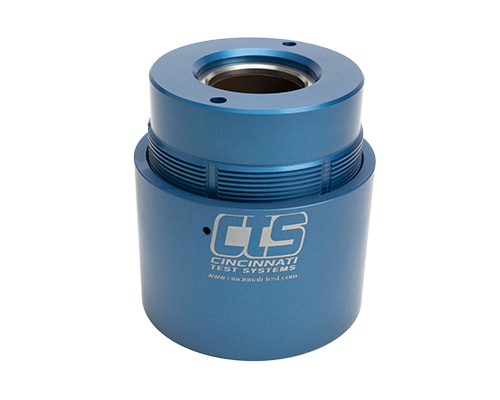

The CO34-AB-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 1.614" to 1.732" (41 mm to 44 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO34-AC-M
Seal Range: 1.614-1.732 in. (41-44 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$810
/
