CTSC-002982

CTSC-002982

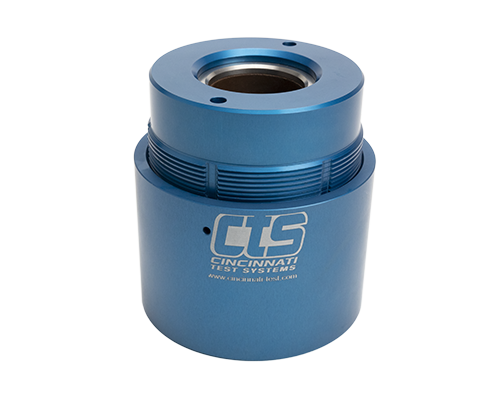

The CO34-AD-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 1.732" to 1.850" (44 mm to 47 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO34-AD-M
Seal Range: 1.732-1.85 in. (44-47 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$810
/
