CTSC-002995

CTSC-002995

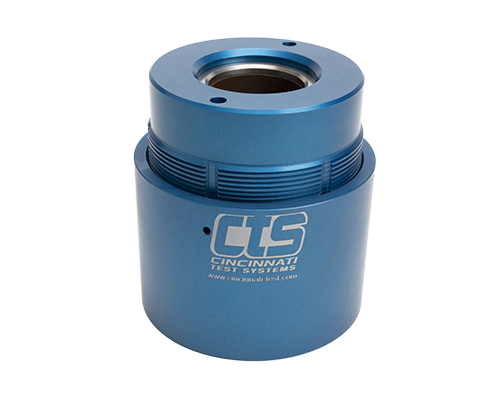

The CO34-AF pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 1.850" to 1.969" (47 mm to 50 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO34-AF
Seal Range: 1.85-1.969 in. (47-50 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 3/4 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$810
/
