CTSC-003002

CTSC-003002

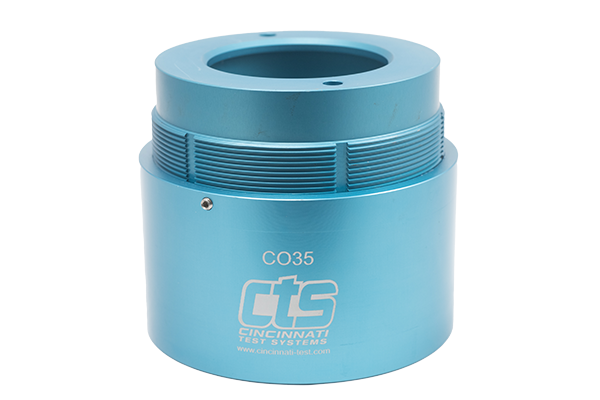

The CO35 Body Only (no main seal kit) is a pneumatically actuated connector designed to seal onto the outside diameter (OD) of a port, tube, or fitting and is available in a variety of sealing ranges from 1.969" to 3.032" (50 mm to 77 mm). Choose the correct main seal kit range for your application.

CTS Connect
Accessory: Body Only
Method: Pneumatic
Type: Outside Diameter
Body Size: CO35
Seal Range: 1.969-3.032 in. (50-77 mm)
Test Air Connection: 1-1/2 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum
Test pressure:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$890
/
