CTSC-003004

CTSC-003004

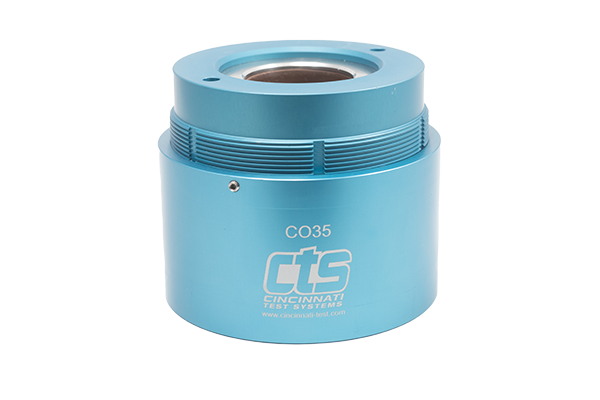

The CO35-AA-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 1.969" to 2.087" (50 mm to 53 mm).

CTSConnect:CO35-AA-M
Seal & Product Type:OD Pneumatic Seal
Sealing Range: 1.969-2.087 in. (50-53 mm)
Seal Material:Medical Grade
Test pressures:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$1,050
/
