CTSC-003024

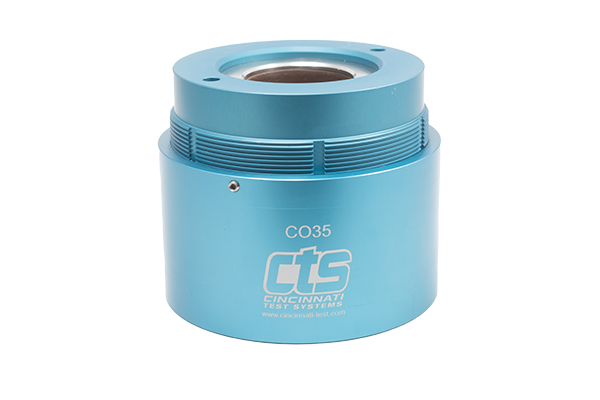

The CO35-AD pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a 2" NPT threaded fitting.

CTS Connect
Method:	Pneumatic
Type:	Outside Diameter
Seal Set:	CO35-AD
Thread Size:	2 in. NPT
Seal Type:	30 Durometer FF - Yellow
Number of Seals:	1
Bore Type:	Threaded
Test Air Connection:	1-1/2 in. NPT
Pilot Air Connection:	1/8 in. NPT
Construction Materials:	Aluminum, stainless steel
Test pressure:	Vacuum to 500 psig
Pilot pressure:	60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.

$1,050
