CTSC-003039

CTSC-003039

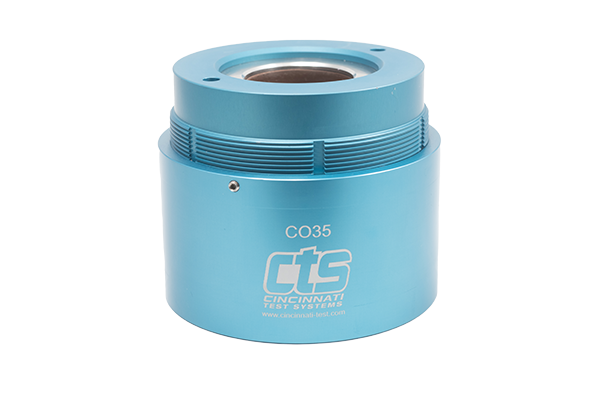

The CO35-AF-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 2.441" to 2.559" (62 mm to 65 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO35-AF-M
Seal Range: 2.441-2.559 in. (62-65 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 1-1/2 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$1,050
/
