CTSC-003053

CTSC-003053

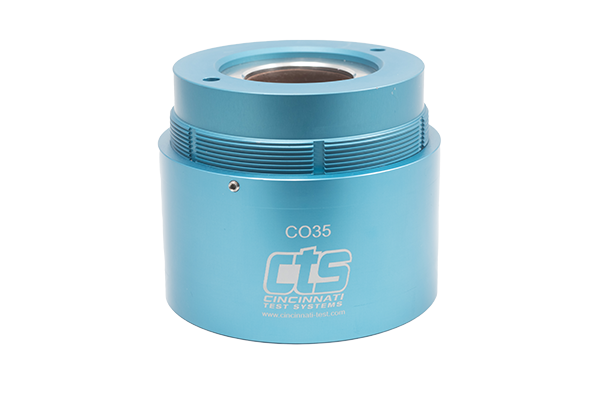

The CO35-AH-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 2.677" to 2.795" (68 mm to 71 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO35-AH-M
Seal Range: 2.677-2.795 in. (68-71 mm)
Seal Type: 40a Durometer Medical Silicone - Gray
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 1-1/2 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$1,050
/
