CTSC-003066

CTSC-003066

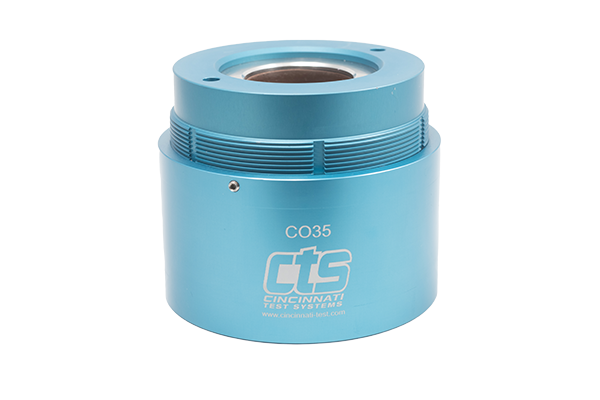

The CO35-AJ pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 2.913" to 3.032" (74 mm to 77 mm).

CTS Connect
Method: Pneumatic
Type: Outside Diameter
Seal Set: CO35-AJ
Seal Range: 2.913-3.032 in. (74-77 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 3
Bore Type: Smooth
Test Air Connection: 1-1/2 in. NPT
Pilot Air Connection: 1/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$1,050
/
