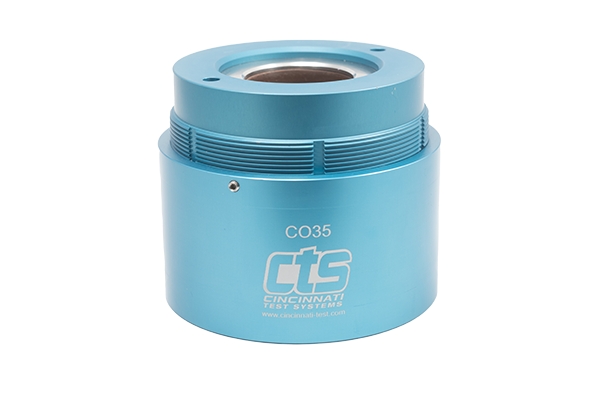

The CO35-AJ-M pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a port, tube, or fitting in medical applications, offering a sealing range from 2.913" to 3.032" (74 mm to 77 mm).

CTSConnect:CO35-AJ-M
Seal & Product Type:OD Pneumatic Seal
Sealing Range: 2.913-3.032 in. (74-77 mm)
Seal Material:Medical Grade
Test pressures:Vacuum to 500 psig
Pilot pressure:Typically 60 - 90 psig
Note: CTS suggests a fixed position support for high pressure testing.
$1,050
/
