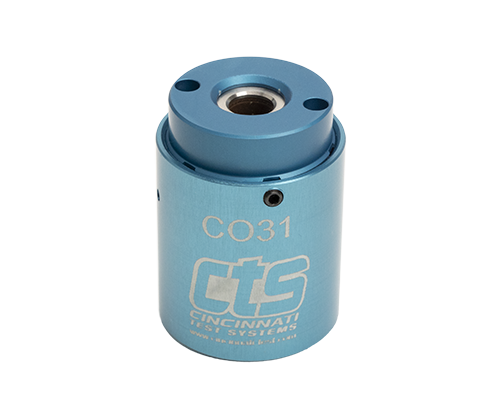

CTSC-003206

The CO31-SAE-0437 pneumatically actuated connector is designed to seal onto the outside diameter (OD) of a 7/16" SAE threaded fitting.

CTS Connect
Method:	Pneumatic
Type:	Outside Diameter
Seal Set:	CO31-SAE-0437
Thread Size:	7/16 in. SAE
Seal Type:	55 Durometer Rubberized Urethane - Black
Number of Seals:	1
Bore Type:	Threaded
Test Air Connection:	1/8 in. NPT
Pilot Air Connection:	1/16 in. NPT
Construction Materials:	Aluminum, stainless steel
Test pressure:	Vacuum to 500 psig
Pilot pressure:	60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
