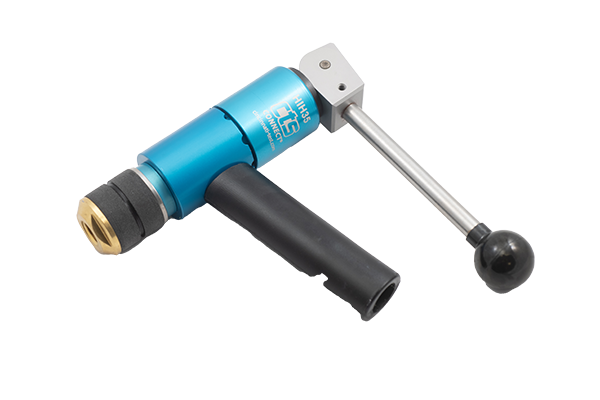

The HIH35-AA manually actuated connector is designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.339" to 1.398" (34 mm to 35.5 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port & Handle
Seal Set: HIH35-AA
Seal Range: 1.339-1.398 in. (34-35.5 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$785
/
