CTSC-003585

CTSC-003585

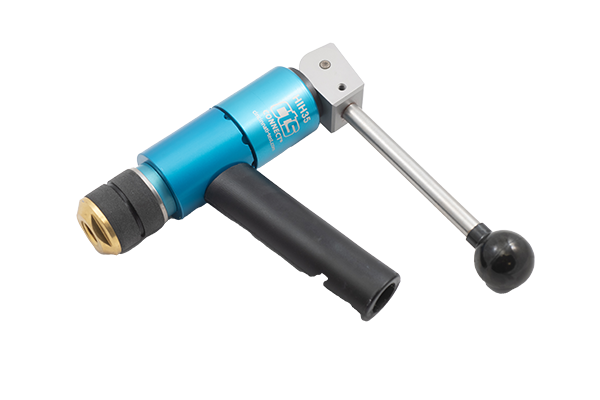

The HIH35-AB1 manually actuated connector is designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 1.516" to 1.575" (38.5 mm to 40 mm).

CTSConnect:HIH35-AB1
Seal & Product Type:ID Manual Seal w/ Handle & Fill Port
Sealing Range: 1.516-1.575 in (38.5-40 mm)
Seal Material:Standard Grade
Test pressures:
Vacuum all finishes
35 PSI on 30 finishes
50 PSI on 65 finishes
75 PSI on 125 finishes
100 PSI on threaded ports
Note: CTS suggests using a tether for high pressure testing on smooth surfaces
$785
/
