CTSC-003651

CTSC-003651

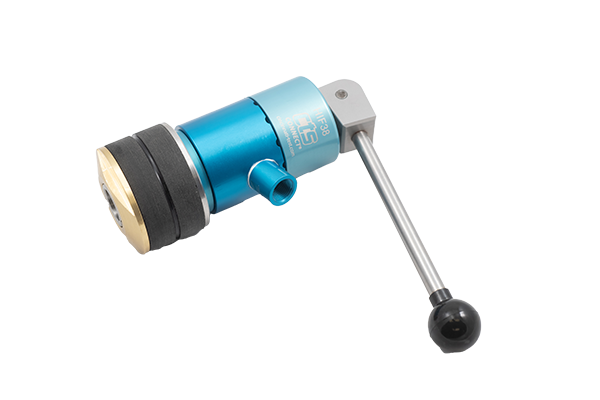

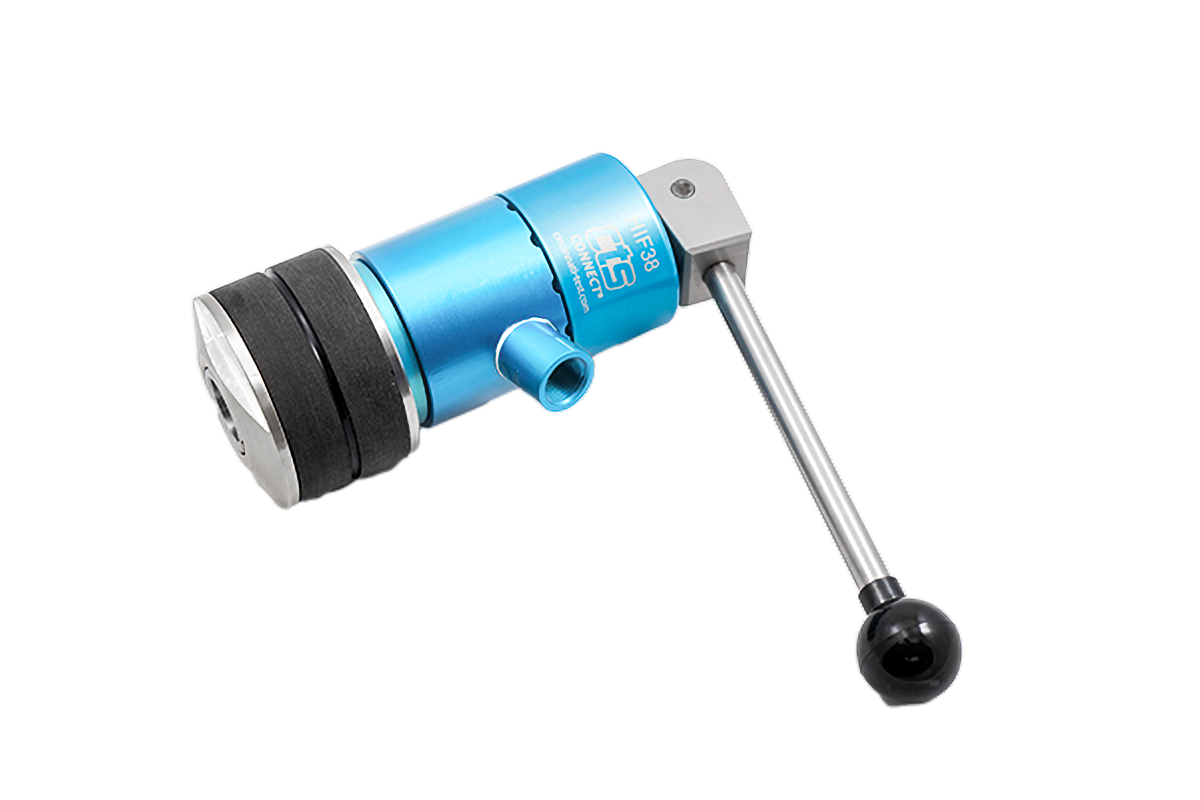

The HIF38-AA manually actuated connector is designed with an NPT-threaded fill port and seals onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 2.585" to 2.655" (65.7 mm to 67.4 mm).

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port
Seal Set: HIF38-AA
Seal Range: 2.585-2.655 in. (65.7-67.4 mm)
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 3/8 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$1,045
/
