CTSC-003835

CTSC-003835

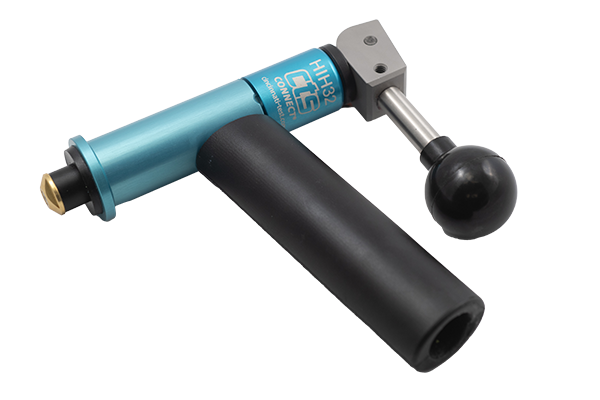

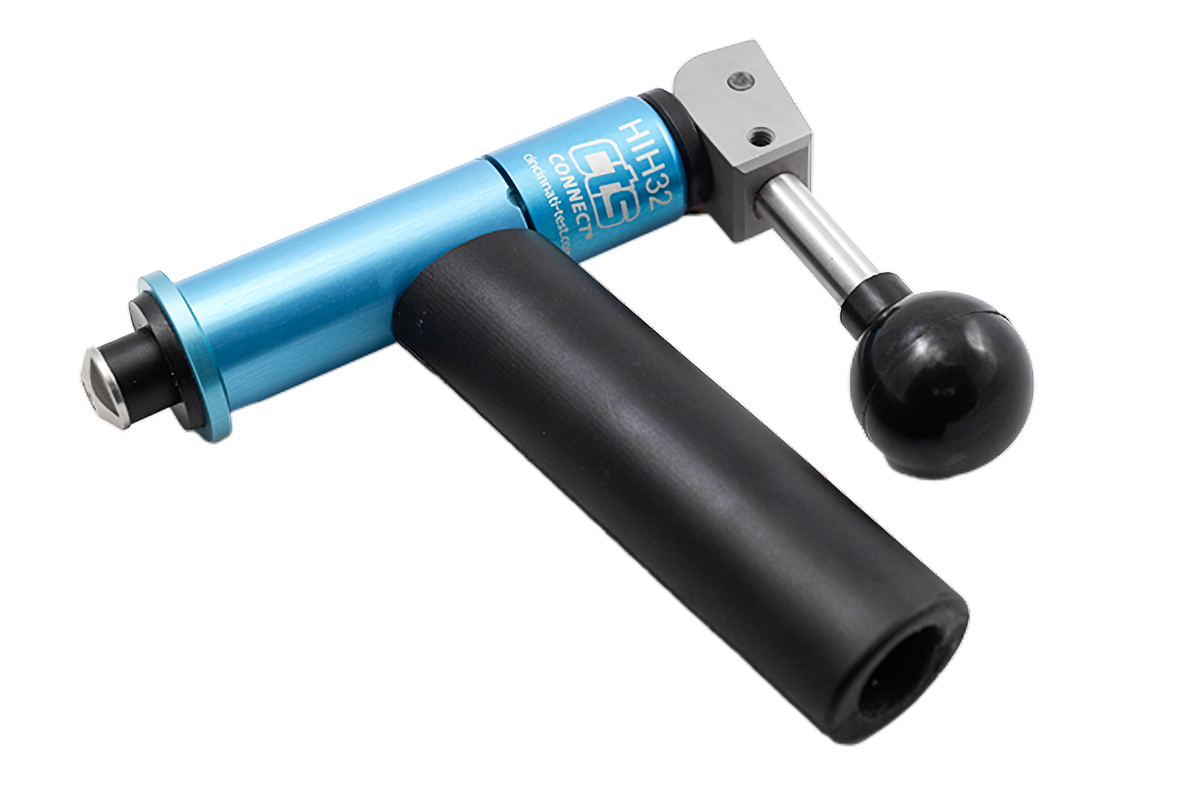

The HIH32-SAE-0750 manually actuated connector is designed an NPT-threaded fill port that features a comfort-grip handle and seals onto the inside diameter (ID) of a 3/4" SAE threaded fitting.

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Fill Port & Handle
Seal Set: HIH32-SAE-0750
Thread Size: 3/4 in. SAE
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Threaded
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$610
/
