CTSC-001436

CTSC-001436

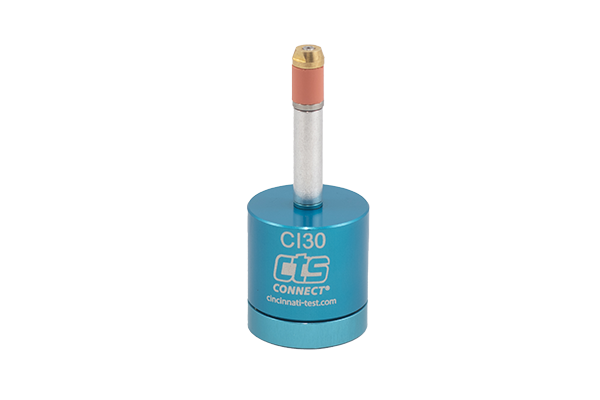

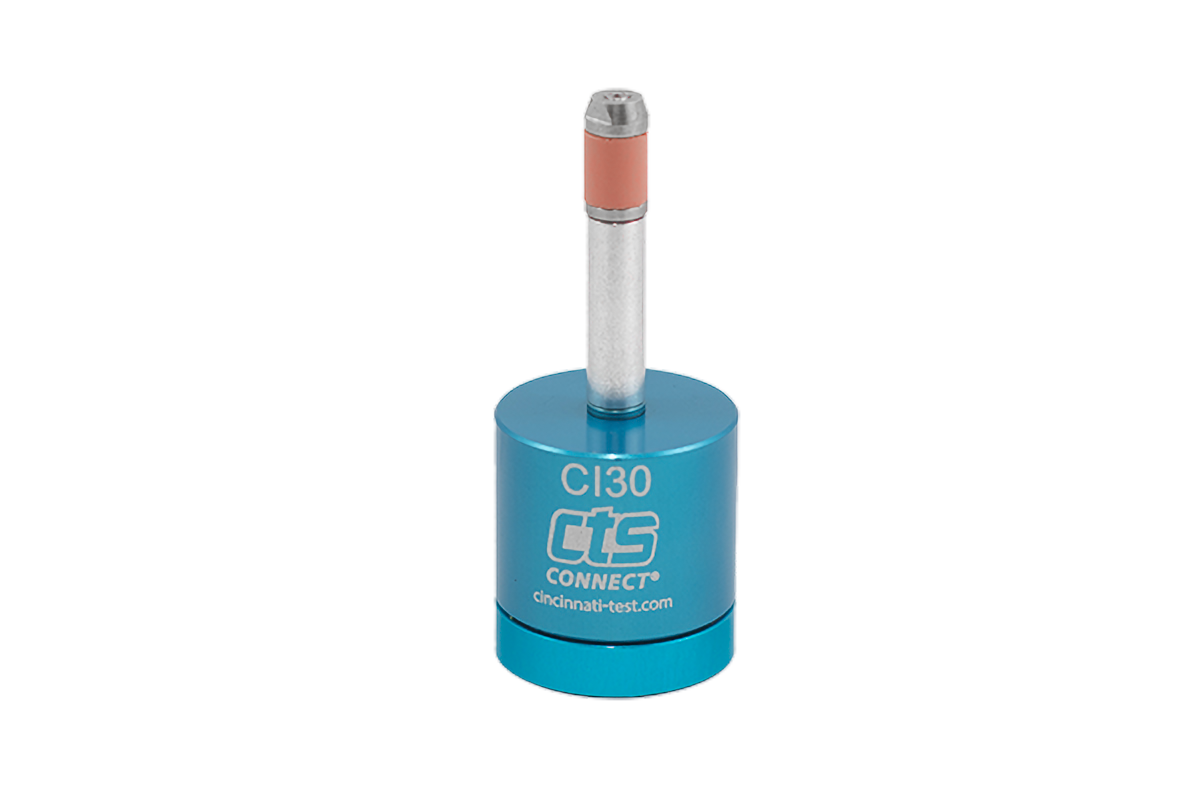

The CI30-A1-E1.0 pneumatically actuated connector with a 1" extension is designed to seal onto the inside diameter (ID) of a port, tube, or fitting, offering a sealing range from 0.270" to 0.290" (6.9 mm to 7.4 mm).

CTS Connect
Method: Pneumatic
Type: Inside Diameter
Seal Set: CI30-A1-E1.0
Seal Range: 0.27-0.29 in. (6.9-7.4 mm)
Seal Type: 60 Durometer Silicone - Pink
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/16 in. NPT
Pilot Air Connection: 1/16 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Pilot pressure:60 - 90 psig (Recommended)
Note: CTS suggests a fixed position support for high pressure testing.
$500
/
